• Extends a single USB port up to 100m using Cat.5/5e/6 network cable (not included)
• Plug & Play installation, OS independent
• Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards*
• Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
• 2 year warranty

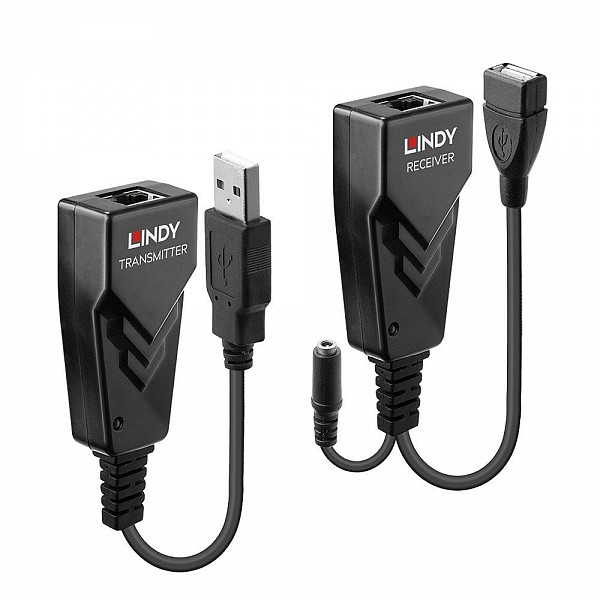

The Lindy 100m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 100m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.5/5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.

For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.

*Please Note: this extender might not support USB devices that require high bandwidths such as Full HD webcams.

Specifications

USB Standard: USB2.0
Supported Bandwidth: 480Mbps
Maximum Distance: 100m (328.08ft)
Transmission Medium: Cat. 5/5e/6 or higher UTP network cable
Chipset: CH317Q, CH536G
Special Features: -

Connectors

Transmitter Input:  USB Type A (Male)
Transmitter Output:  RJ45 (Female)
Receiver Input:  RJ45 (Female)
Receiver Output: USB Type A (Female)
Power: 3.5/1.35mm DC socket

Physical Properties

Dimensions WxDxH: 69x36x22mm (2.72x1.42x0.87in)
Housing Material: Plastic
Net Weight: 0.05kg (0.11lb)
Operating Temperature: 0° - 40°C (32°F - 104°F)
Storage Temperature: -10°C - 60°C (14°F - 140°F)
Humidity: 0 - 80% RH (non-condensing)
Power Requirements: 5V DC 2A
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 200x200x48mm (7.87x7.87x1.89in)
Gross Weight: 0.25kg (0.55lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH, CP65

Package contents

Transmitter unit
Receiver unit
Multi-Country Power Supply (EU, UK, US & AUS)
Lindy Manual

Purchasing information

No.: 42674
EAN: 4002888426749
