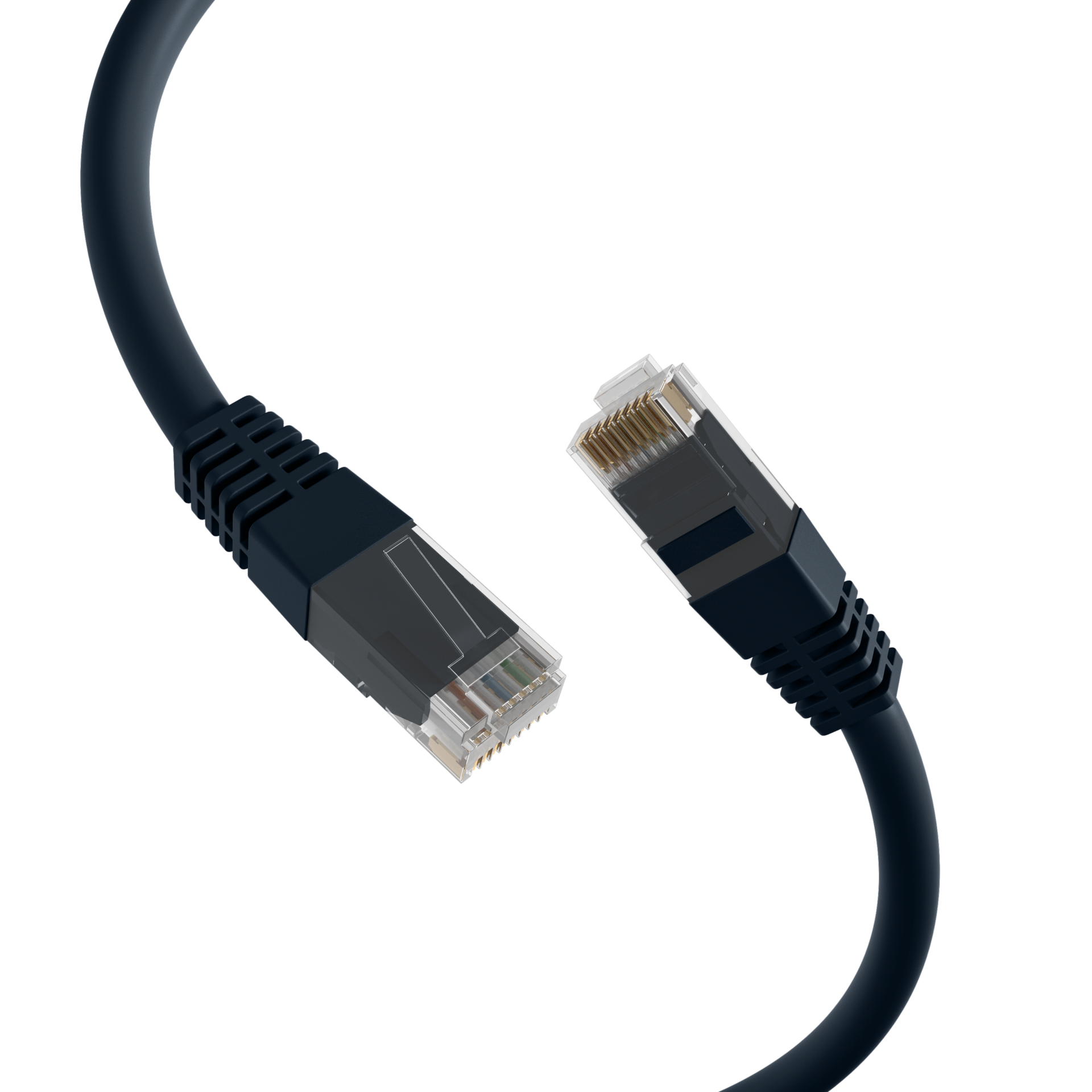

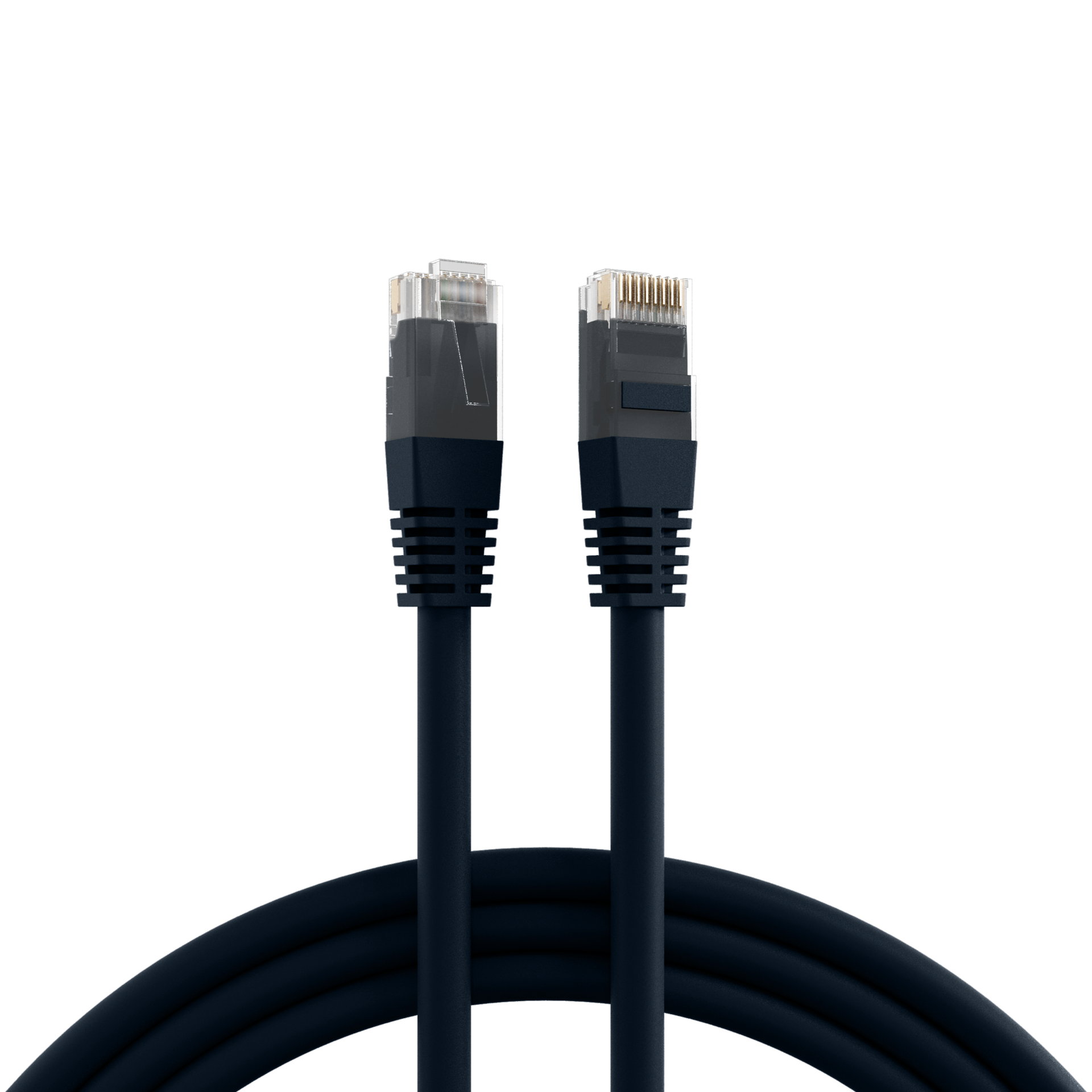

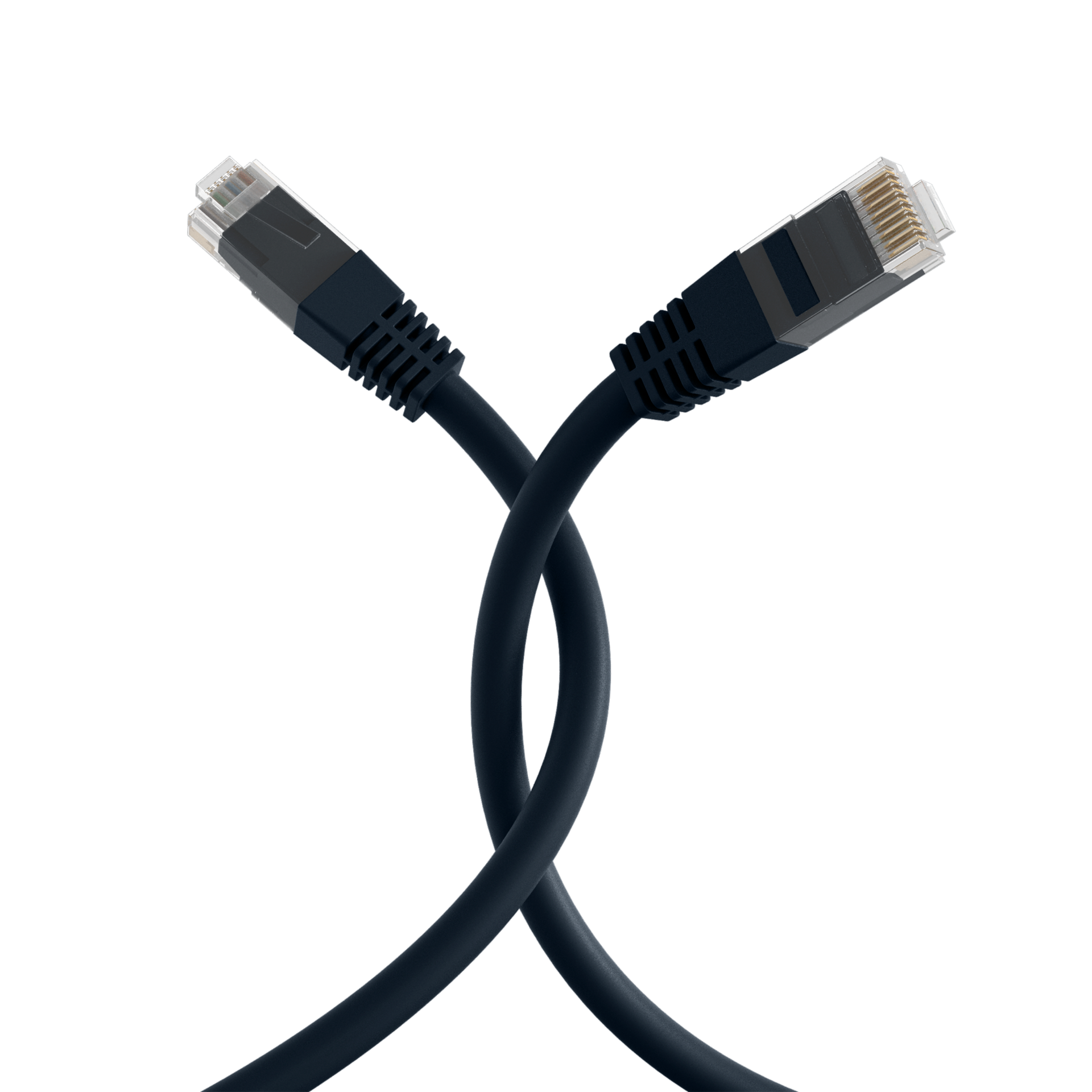

EFB UTP 0.5m Cat6 μαύρο K8100SW.0,5
Κωδικός plus26: 5853-560
Κωδικός Εργοστασίου (MPN): K8100SW.0,5
The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot
- AWG-size: 24/7
- Allocation: acc. TIA/EIA 568B
- Anti-kink sleeve: moulded-on
- Area of Application: Data center
- Industrial Ethernet
- Structured cabling
- Bandwidth: 250MHz
- Bending radius: 30 mm
- Cable construction: 4x2
- Cable type: U/UTP
- Cabling standard: EN50173
- ISO/IEC 11801
- Category: 6
- Colour anti-kink sleeve: black
- Colour outer sheath: black
- Conductor Material: CCA
- Connector: IEC 60603-7-4
- Connector type: RJ45 standard
- Contacts: Gold plated µ" Gold plated
- Current Rating: max. 1 A
- Fire retardant version: False
- Halogen free: False
- Jacket Material: Polyvinylchlorid (PVC)
- Length imprint: True
- Locking lever: False
- Mating cycles: ≥750
- Model: Unshielded
- NVP value: - %
- Oil resistant (acc. EN 60811-2-1): False
- Oil resistant (according to EN 60811-404): False
- Operating-/ tempering voltage: max. 50 V DC
- Outer diameter of the cable: 5.9 mm
- POE class: 4PPoE acc. to IEEE802.3bt
- PoE+ acc. to IEEE802.3at
- PoE acc. to IEEE802.3af
- Pin assignment: 1:1
- Printing: Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de
- Silicone-free: True
- Suitable for degree of protection (IP): IP20
- Temperature range: -20 – 70 °C
- Transmission: 5Gbit
- Type of connector connection 1: RJ45 8(8)
- Type of connector connection 2: RJ45 8(8)
Στείλτε μια ερώτηση για το προϊόν
Οι τιμές ενδέχεται να αλλάξουν χωρίς προηγούμενη ειδοποίηση.
Η δέσμευση τιμών ισχύει μόνο μέσω ηλεκτρονικής παραγγελίας και της επιβεβαίωσής της.
Οι φωτογραφίες και τα βίντεο των προϊόντων είναι ενδεικτικά και μπορεί να διαφέρουν από το τελικό προϊόν.
Δεν γίνονται δεκτές επιστροφές προϊόντων που έχουν παραγγελθεί κατόπιν αιτήματος.
Η παράδοση των RACK πραγματοποιείται στην είσοδο του κτιρίου.
Roline UTP Patch Cord Cat.6 (Class E) yellow 1m - 21.15.1532
Κωδικός plus26: 5853-460
MPN: 21.15.1532-100
Εγγραφείτε για τιμή
EFB SFTP 0.5m Cat6 Μπλε LSZH K5513.0,5
Κωδικός plus26: 173-385234
MPN: K5513.0,5
Εγγραφείτε για τιμή

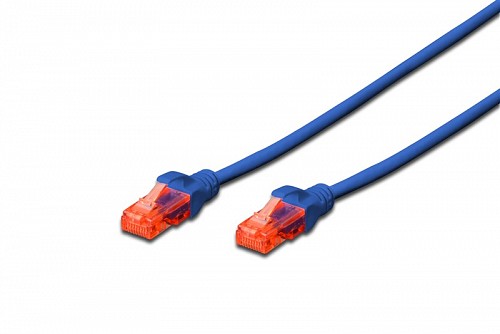

Digitus Utp 0.5M Cat6 Μπλέ DK-1617-005/B
