HARDWARE FEATURES

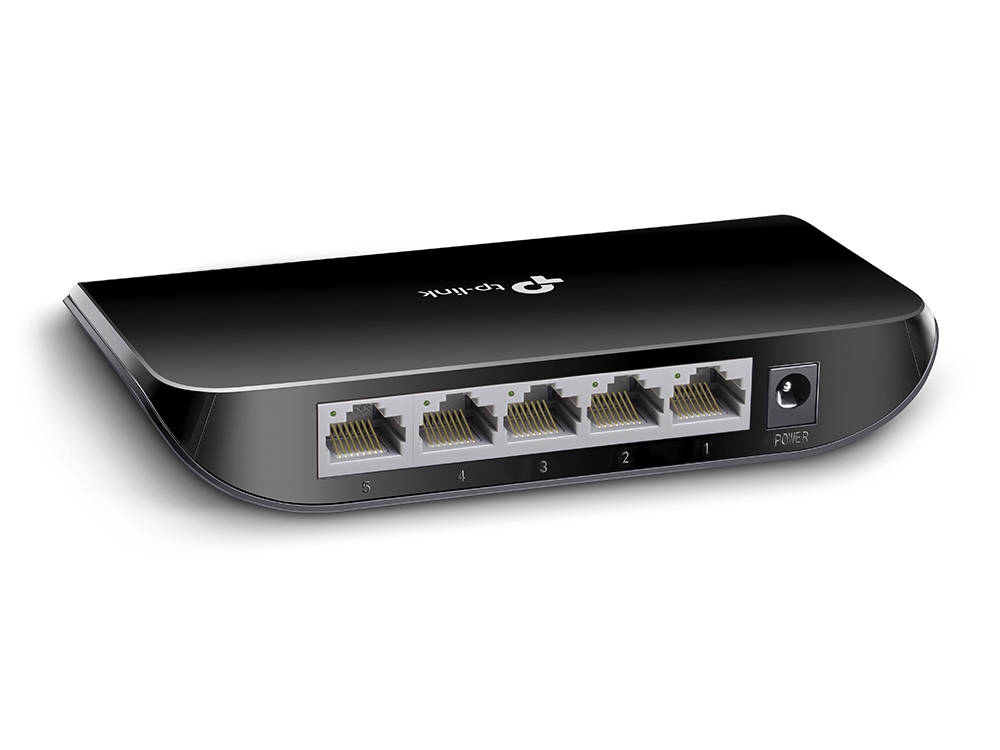

Interface 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity Fanless
Physical Security Lock No
External Power Supply External Power Adapter (Output: 5VDC / 0.6A)
Dimensions ( W x D x H ) 5.5×3.5×0.9 in. (140×88×23 mm)
Max. Power Consumption 3.67W (220V/50Hz)
Max. Heat Dissipation 12.51 Btu/hr

SOFTWARE FEATURES

Advanced Features Green Technology
802.3x Flow Control
Back Pressure
802.1p/DSCP QoS (for V7 and later version)
Transmission Method Store and Forward

OTHERS

Certification FCC, CE, RoHs
Package Content 5-Port Gigabit Desktop Switch TL-SG1005D
Power Adapter
Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
