Delock PCI PARALLEL 1 PORT + LOW PROFILE 90412

Κωδικός plus26: 3897-44

Κωδικός Εργοστασίου (MPN): 90412

Εγγραφείτε για τιμή

Description

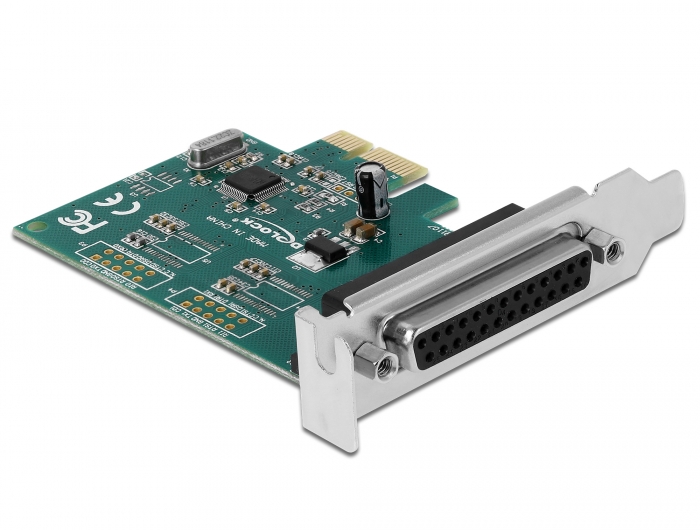

This PCI Express card by Delock expands a PC by one external parallel port. Different devices such as scanner, printer etc. can be connected to this card.

Specification

• Connectors:
external: 1 x Parallel DB25 female
internal: 1 x PCI Express x1, V1.1
• Chipset: WCH382L
• Data transfer rate up to 1.5 Mbps
• FIFO: 256 byte
• SPP, EPP, ECP compatible to IEEE 1284
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 79 x 59 x 13 mm

System requirements

• Windows 7/7-64/8.1/8.1-64/10/10-64
• Windows Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
• PC with one free PCI Express slot

Package content

• PCI Express card
• Low profile bracket
• Driver CD
• User manual

General
Form factor
• Low Profile
Specification
• IEEE1284
• PCIe 1.1
• SPP, EPP, ECP
Supported operating system
• Windows 10 32-bit
• Windows 10 64-bit
• Windows 7 32-bit
• Windows 7 64-bit
• Windows 8.1 32-bit
• Windows 8.1 64-bit
Slot
• PCIe
Interface
External
• 1 x Parallel DB25 female
Internal
• 1 x PCI Express x1, V1.1
Technical characteristics
Chipset
• WCH CH382L
Data transfer rate
• 1.5 MBps LPT
Data transmission
• Bi-directional
Physical characteristics
Slot bracket
• low profile
• standard
Length
• 79 mm
Width
• 59 mm
Height
• 13 mm
