Specification

• Connectors:
  Input:
    1 x HDMI-A 19 pin male
    1 x USB Type-A male (power supply)
  Output:
    1 x DisplayPort 20 pin female
• Chipset: STDP2600
• DisplayPort 1.2 and High Speed HDMI specification
• High Speed HDMI receiver - link rate up to 2.97 Gb/s per data pair
• Resolution up to 4Kx2K @ 30 Hz; 1920 x 1080 @ 120 Hz (depending on the system and
  the connected hardware)
• Supports 3D displays
• Supports Audio 7.1 channel up to 192 kHz sample rate
• Supports HDCP 1.3
• Gold-plated connectors
• Colour depth:
  RGB / YCC (4:4:4) - 16 bit colour
  YCC (4:2:2 / 4:2:0) - 16 bit colour
• Power consumption:
  operation: ca. 500 mW
  standby: ca. 25 mW
• Colour: white
• Cable length incl. connectors: ca. 24.5 cm
• OS independent, no driver installation necessary

System requirements

• A free HDMI-A female
• One free USB-A female
• Monitor with a free DisplayPort interface
• One DisplayPort cable

Package content

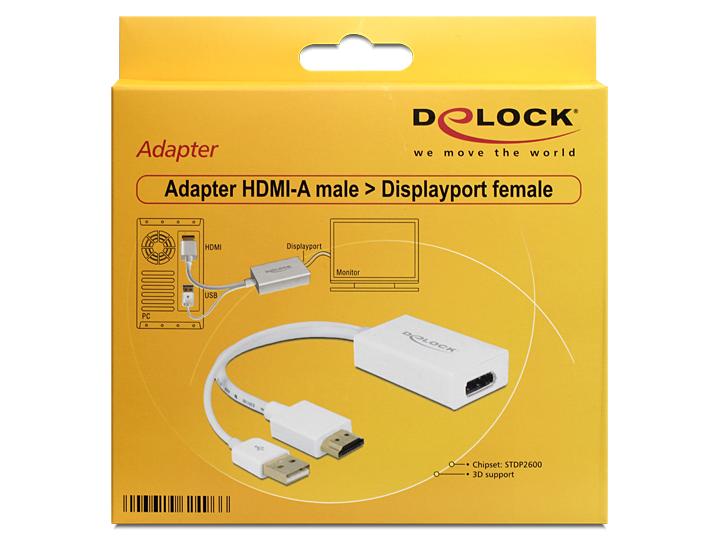

• Adapter HDMI to DisplayPort
