Description
CAT 8.1 S-FTP patch cord, Cu, LSZH AWG 24/7, length 1 m, color grey
The high-end network solution according to the CAT 8.1 standard
Reach a bandwidth of up to 2000 MHz
With LSZH (low smoke zero halogen) outer sheath for best fire behavior and low smoke emission
Transparent green colored connector with metal shielding for easy identification of Category 8.1 (2000 MHz)
Inner conductor: Copper (Cu)
PoE++ compatible
The DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standards. They guarantee that the cable installation complies with the ISO & EN channel specification and provide excellent performance in the DIGITUS® CAT 8.1 cabling. The performance was tested up to 2000 MHz, including performance characteristics such as near-end crosstalk (“NEXT”). The DIGITUS® patch cables were specifically designed to fully meet all requirements in various application areas. Each cable is equipped with a molded anti-kink sleeve with strain relief. In addition, the sleeve has a locking lever protection, which prevents kinking of the cables and breaking-off of the locking lever from the connector. Category 8.1 is simply identified by the green colored connectors.
Technical Details
- 2 x RJ45 connectors (8P8C)
- Covers with kink protection, strain relief and locking lever protection
- Length designation on the covers
- Inner conductor: Copper (Cu)
- Halogen free: yes
- Pin assignment: 1:1
- Category: 8.1
- AWG cross-section: 24
- Anti-kink sleeve: molded
- Connector 1 type: RJ45 8(8)
- Connector 2 type: RJ45 8(8)
- Cable construction: 4 x 2
- Flame retardant version: yes
- Anti-kink sleeve color: Grey
- Locking lever protection: yes
- NVP value: 76
- Oil resistant to EN 60811-404: no
- Sheath color: Grey
- Length: 1 m
- Slim Version: no
- Length: 1 m
- Category: CAT 8.1
- Color: grey
- Configuration: 1:1
- Jacket: LSOH
- Shielding: S-FTP, pairs in metal foil and braid shielding
- Structure: 4 x 2 AWG 24/7, twisted pair
Στείλτε μια ερώτηση για το προϊόν
Οι τιμές ενδέχεται να αλλάξουν χωρίς προηγούμενη ειδοποίηση.
Η δέσμευση τιμών ισχύει μόνο μέσω ηλεκτρονικής παραγγελίας και της επιβεβαίωσής της.
Οι φωτογραφίες και τα βίντεο των προϊόντων είναι ενδεικτικά και μπορεί να διαφέρουν από το τελικό προϊόν.
Δεν γίνονται δεκτές επιστροφές προϊόντων που έχουν παραγγελθεί κατόπιν αιτήματος.
Η παράδοση των RACK πραγματοποιείται στην είσοδο του κτιρίου.

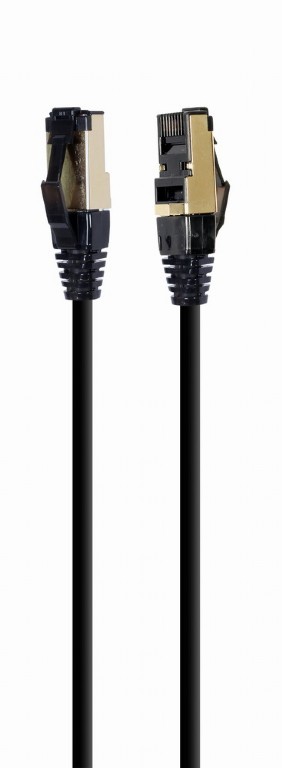

Cablexpert S/FTP Cat. 8 LSZH patch cord black 2m PP8-LSZHCU-BK-2M
