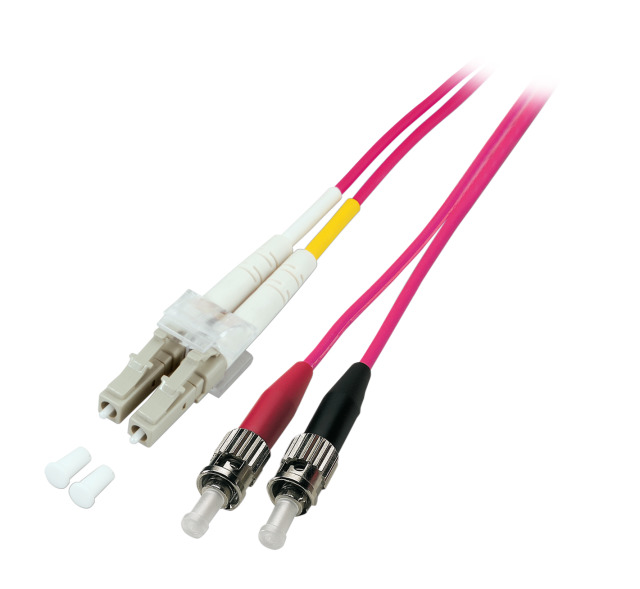

EFB F/O LC-ST 2m 50/125 OM4 LSZH Ο0326.2
Κωδικός plus26: 173-356090
Κωδικός Εργοστασίου (MPN): Ο0326.2
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Fibre type
Multimode 50/125
Category
OM4
Bend optimized fiber
OM4 acc. to IEC60793-2-10 type A1a.2 and A1a.3
Number of fibres
2
Anti-kink sleeve
put-on
Type of connector connection 1
LC-Duplex
Connector colour 1
beige
Type of connector connection 2
ST
Max. Tension
160 N
Min. Bending radius (Static)
10xOD
Min. Bending radius (Dynamic)
20xOD
Cable type
I-V(ZN) H
Cable Construction
Duplex
Cable Ø
2.0 mm
Colour outer sheath
erica-violet
Jacket Material
LSZH
Flame retardant
According to EN 50265-2-1
Halogen free
acc. IEC60754-1
Low smoke
acc. IEC61034-1
Operating Temperature
-20 – 75 °C
Storage Temperature
-20 – 85 °C
Quality class multimode
A/1 according to IEC-61753-222-2
Cable Conform to Standard
IEC 60793-2
