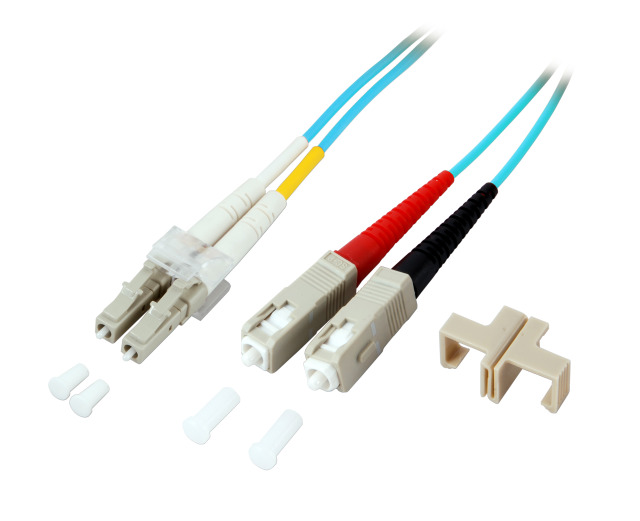

EFB F/O LC-SC 1.5m 50/125 OM3 LSZH O0314.1,5

Κωδικός plus26: 173-356083

Κωδικός Εργοστασίου (MPN): O0314.1,5

Εγγραφείτε για τιμή

Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.

Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.

Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper

Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report

Fibre type
Multimode 50/125

Category
OM3

Bend optimized fiber
OM3 acc. to IEC60793-2-10 type A1a.2 and A1a.3

Number of fibres
2

Anti-kink sleeve
put-on

Type of connector connection 1
LC-Duplex

Connector colour 1
beige

Type of connector connection 2
SC-Duplex

Connector colour 2
beige

Max. Tension
160 N

Min. Bending radius (Static)
10xOD

Min. Bending radius (Dynamic)
20xOD

Cable type
I-V(ZN) H

Cable Construction
Duplex

Cable Ø
2.0 mm

Colour outer sheath
aqua

Jacket Material
LSZH

Flame retardant
According to EN 50265-2-1

Halogen free
acc. IEC60754-1

Low smoke
acc. IEC61034-1

Operating Temperature
-20 – 75 °C

Storage Temperature
-20 – 85 °C

Quality class multimode
A/1 according to IEC-61753-222-2

Cable Conform to Standard
IEC 60793-2
