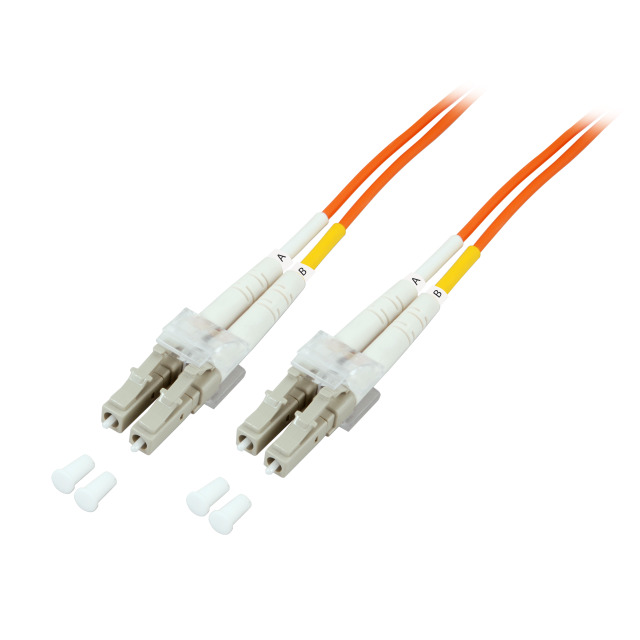

EFB F/O LC-LC 15m 62.5/125 LSZH O0330.15/RL9015

Κωδικός plus26: 173-356067

Κωδικός Εργοστασίου (MPN): O0330.15/RL9015

Εγγραφείτε για τιμή

Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.

Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.

Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper

Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report

Fibre type
Multimode 62.5/125

Category
OM1

Number of fibres
2

Anti-kink sleeve
put-on

Type of connector connection 1
LC-Duplex

Connector colour 1
beige

Type of connector connection 2
LC-Duplex

Connector colour 2
beige

Max. Tension
160 N

Min. Bending radius (Static)
10xOD

Min. Bending radius (Dynamic)
20xOD

Cable type
I-V(ZN) H

Cable Construction
Duplex

Cable Ø
2.0 mm

Colour outer sheath
orange

Jacket Material
LSZH

Flame retardant
According to EN 50265-2-1

Halogen free
acc. IEC60754-1

Low smoke
acc. IEC61034-1

Operating Temperature
-20 – 75 °C

Storage Temperature
-20 – 85 °C

Insertion loss 850nm
<0,3 dB

Quality class multimode
A/1 according to IEC-61753-222-2

Connector Conform to Standard
IEC 61754-20

Cable Conform to Standard
IEC 60793-2
