EFB F/O 24x 50/125 U-DQ(ZN)BH MM OM3 54524.1L CPR
Κωδικός plus26: 173-356051
Κωδικός Εργοστασίου (MPN): 54524.1L CPR

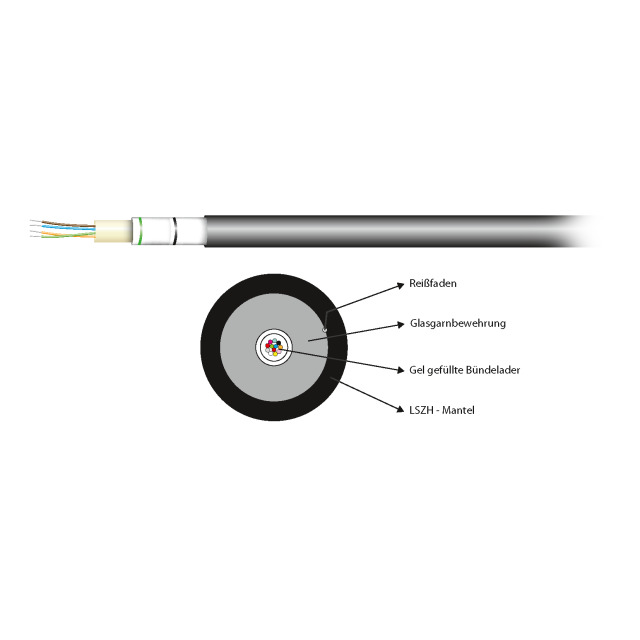

Indoor- and outdoor application Installation in conduits and shafts Primary cabling (campus): backbone Secondary cabling (vertical): riser area (backbone) Universal cable LSZH black, non-metallic, longitudinal water tight UV resistant, halogenfree, rodent resistant Central/Loose tubes, 250μm coatin. The cable diameter can vary.
Application
indoor/outdoor
Blow in
No
Radial water blocking
False
Longitudinal water blocking
True
Cable metal free
True
With rodent protection
True
Circuit integrity
No
Crush resistance
150 N/dm
Longitudinally watertight
3/24 m/h
Fibre type
Multimode 50/125
Fibre category
OM3
Type of tube
Central loose tube
Tube Ø
Up to 12 fibers: 3.5 ; Up to 24 fibers: 4.0 mm
Fiber marking
Colour
Tube marking
Colour
With strain relief
True
Armouring
True
Material outer sheath
LSZH
Euro Class
Dca
Colour outer sheath
black
Flame retardant
acc. EN 60332-3-24
Halogen free
acc. EN 60754-1/2
Low smoke
acc. EN 61034-2
Oil resistant
No
Resistant to chemicals
False
Temperature Range (Operation)
-20 – 60 °C
Temperature Range (Storage)
-25 – 70 °C
Temperature Range (Installation)
-5 – 50 °C
Rayleigh Backscatter Coefficient 850nm
1,483
Rayleigh Backscatter Coefficient 1300nm
1,478
IL max. (dB/km) 850nm
2,5
IL max. (dB/km) 1300nm
0,7
Harmonized standard
EN 50575
Transmission standards
IEEE 802.3 10Mbit to 100Gbit
