Specification

• Connectors:
  1 x DisplayPort 20 pin male >
  1 x DVI-D (Dual Link) 24+1 male
• Chipset: NXP PTN3361
• DVI connector with screws
• DisplayPort 1.1 specification
• Passive cable (level shifter), suitable only for graphics cards with DP++ output
• Signal direction: DisplayPort input > DVI output
• Cable gauge: 28 AWG
• Cable diameter: ca. 6.5 mm
• Twisted-pair cabling
• Copper conductor
• Gold-plated connectors
• Triple shielded cable
• Data transfer rate up to 10.8 Gb/s
• Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected
  hardware)
• Colour: black
• Length incl. connectors: ca. 2 m

System requirements

• A free DisplayPort DP++ female port

Package content

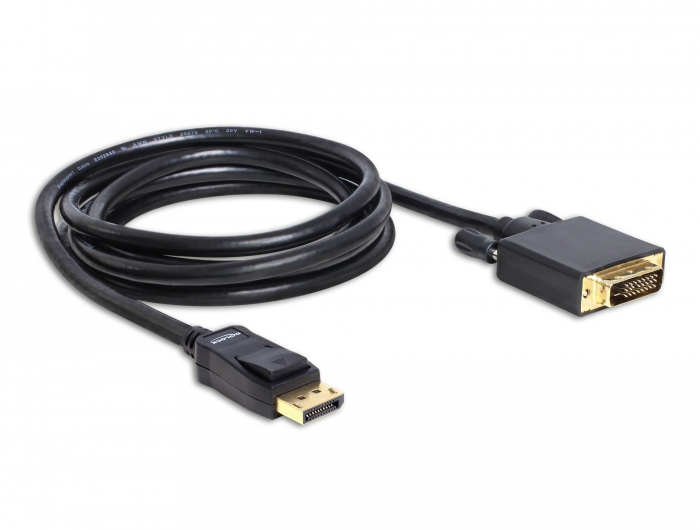

• DisplayPort to DVI cable
