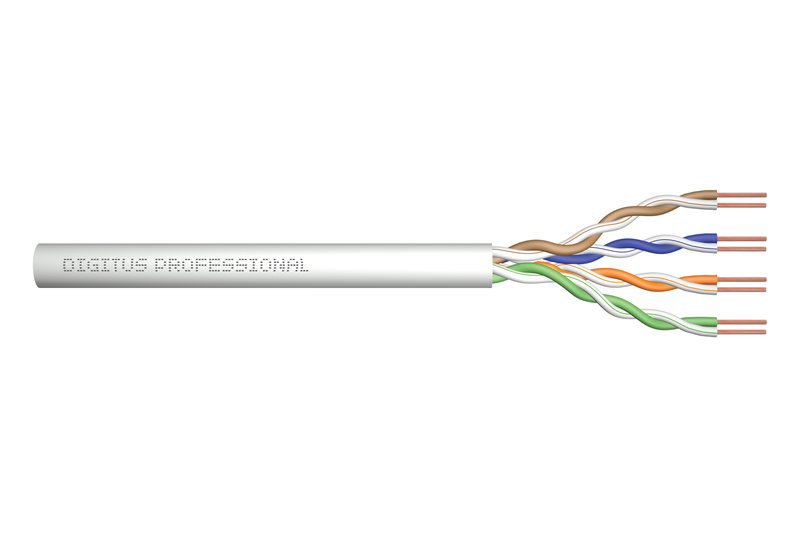

CAT 5e U-UTP installation cable, 100 MHz Eca (PVC), AWG 24/1, 100 m paper box, simplex, color grey

• 1GBit Ethernet
• 100 Mhz transmission frequency
• PoE Power over Ethernet support
• CPR class Eca

Technical Details

• Physical properties:
• Insulation: PE
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shield: None
• Overall shielding: None
• Outer jacket: PVC
• Outer jacket diameter: 0.5 mm nominal
• Color: Grey (RAL 7035)
• Mechanical properties:
• Tensile loading: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Shipping- and storage temperature range: -20 °C up to +75 °C
• Operating temperature range: -20 °C up to +60 °C
• Installation temperature range: 0 °C up to +50 °C
• Overall diameter: 5.0 mm nominal
• Electrical properties:
• Mean impedance: 100±5 Ohm @ 1-100 MHz
• Capacitance: 48 pF/m nominal @ 800 Hz
• Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: 40 dB
• Signal propagation delay: 535 nS/100 m max.
• Propagation delay: 20 nS/100 m max.
• NVP: 69%
• Core insulation: PE (polyethylene)
• Core identification: Colour
• Flame retardant: No
• Stranding element: Pairs
• Colour outer sheath: Grey
• Category: 5E
• Conductor material: Cu, bare
• Screen over stranding element: None
• Screen over stranding: None
• Material outer sheath: PVC
• Conductor category: Class 1 = solid
• Permitted cable outer temperature, in movement: -20 … 75
• Permitted cable outer temperature, fixed: -20 … 60
• AWG-size: 24
• Number of cores: 8
• Outer diameter approx.: 5
• Low smoke (acc. EN 61034-2): no
• NVP value: 69
• Halogen free (acc. EN 60754-1/2): no
