FEATURES

●Extending Arm: provides a wide range of viewing angles

●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

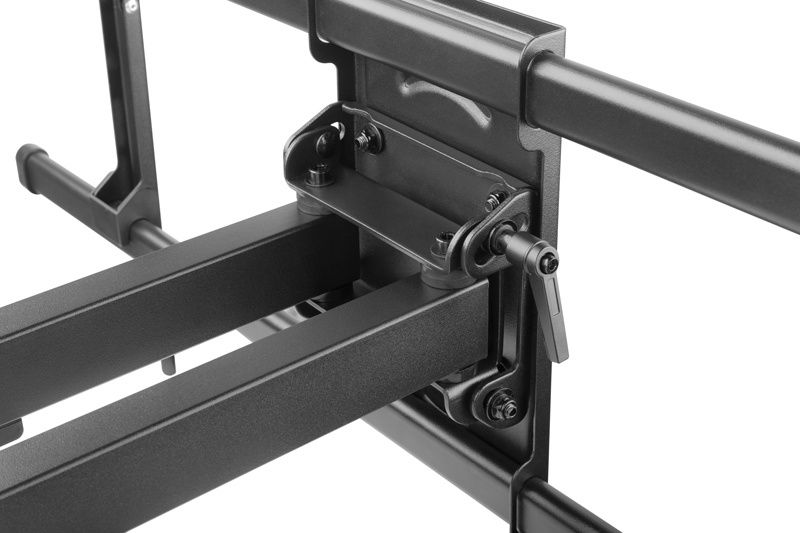

●Quick-Release Latch: locks/unlocks the display in place

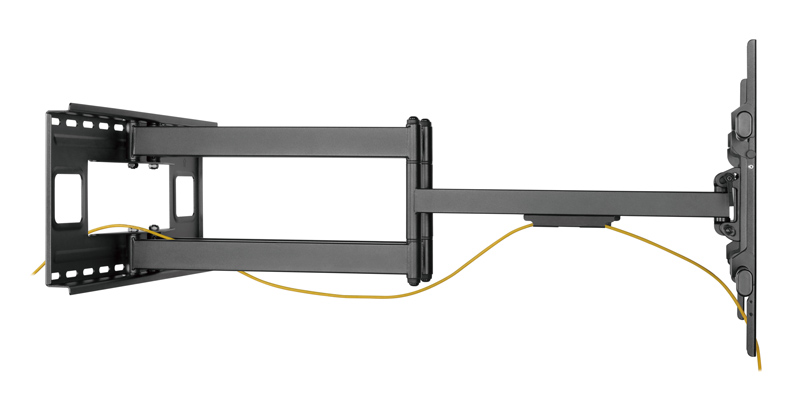

●Cable Management: keep everything organized

SPECIFICATIONS

• Product Category:Full-motion TV Wall Mount
• Rank:Standard
• Material:Steel
• Metal Sheet Thickness:Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
• Pipe Size:40x25x1.5mm Square Steel Tube,50x25x1.5mm Square Steel Tube (1.6"x0.98"x0.059" Square Steel Tube,2"x0.98"x0.059" Square Steel Tube)
• Surface Finish:Powder Coating
• Color:Fine Texture Black

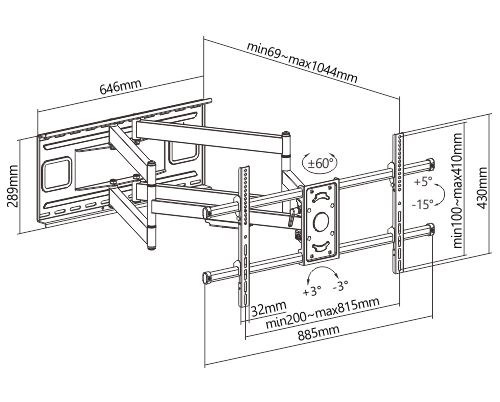

• Dimensions:1044x885x430mm (41.1"x34.8"x16.9")
• Fit Screen Size:43"-90"
• Fit Curved TV:Yes
• Mounting Hole Pattern :VESA Only
• VESA Compatible:200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400
• Max. VESA:800x400
• Weight Capacity:80kg (176lbs)
• Strength Tested:3 Times Approved
• Profile:69~1044mm (2.7"~41.1")
• Tilt Range:+5°~-15°
• Swivel Range:+60°~-60°
• Screen Level:+3°~-3°
• Screen Freely Tilting:Yes
• Installation:Solid Wall,Double Stud(406mm/450mm/600mm)
• Panel Type:Detachable Panel
• Wall Plate Type:Fixed Wall Plate
• Direction Indicator:Yes
• Cable Management:Yes
• Bubble Level:Hook-on Bubble Level(Included in Components Package)
• Accessory Kit Package:Compartment Polybag
