Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.

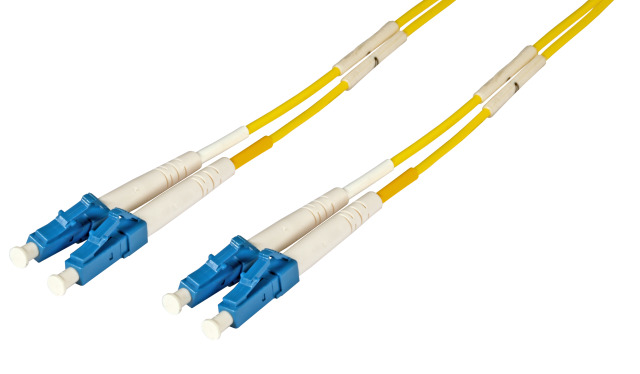

Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
-
- Fibre type Singlemode
-
- Category OS2
-
- Bend optimized fiber no
-
- Number of fibres 2
-
- Anti-kink sleeve put-on
-
- Type of connector connection 1 LC-Duplex
-
- Connector colour 1 blue
-
- Type of connector connection 2 LC-Duplex
-
- Connector colour 2 blue
-
- Max. Tension 160 N
-
- Min. Bending radius (Static) 10xOD
-
- Min. Bending radius (Dynamic) 20xOD
-
- Cable type I-V(ZN) H
-
- Cable Construction Duplex
-
- Cable Ø 2.0 mm
-
- Colour outer sheath yellow
-
- Jacket Material LSZH
-
- Flame retardant According to EN 50265-2-1
-
- Halogen free acc. IEC60754-1
-
- Low smoke acc. IEC61034-1
-
- Operating Temperature -20 – 75 °C
-
- Storage Temperature -20 – 85 °C
-
- Insertion loss 1310nm <0,3 dB
-
- Quality class singlemode B/2 acc. IEC 61753-1
-
- Connector Conform to Standard IEC 61754-20
-
- Cable Conform to Standard IEC 60793-2
