HARDWARE FEATURES

Interface USB 3.0
LED Status
Dimensions 2.28 × 0.71 × 6.83 in (57.8 × 18 × 173.4 mm)
Antenna 1 External High Gain Antenna

WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Signal Rate 5 GHz:
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity 5 GHz:
11ac VHT80: -62dBm
11ac VHT40: -64dBm
11ac VHT20: -68dBm
11n HT40: -71dBm
11n HT20: -73dBm
11a 54Mbps: -77dBm
2.4 GHz:
11n HT40: -70dBm
11n HT20: -71dBm
11g 54Mbps: -73dBm
11b 11Mbps: -87dBm
Transmit Power 5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP)
2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP)
Wireless Modes Infrastructure mode
Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

OTHERS
Certification FCC, CE, RoHS

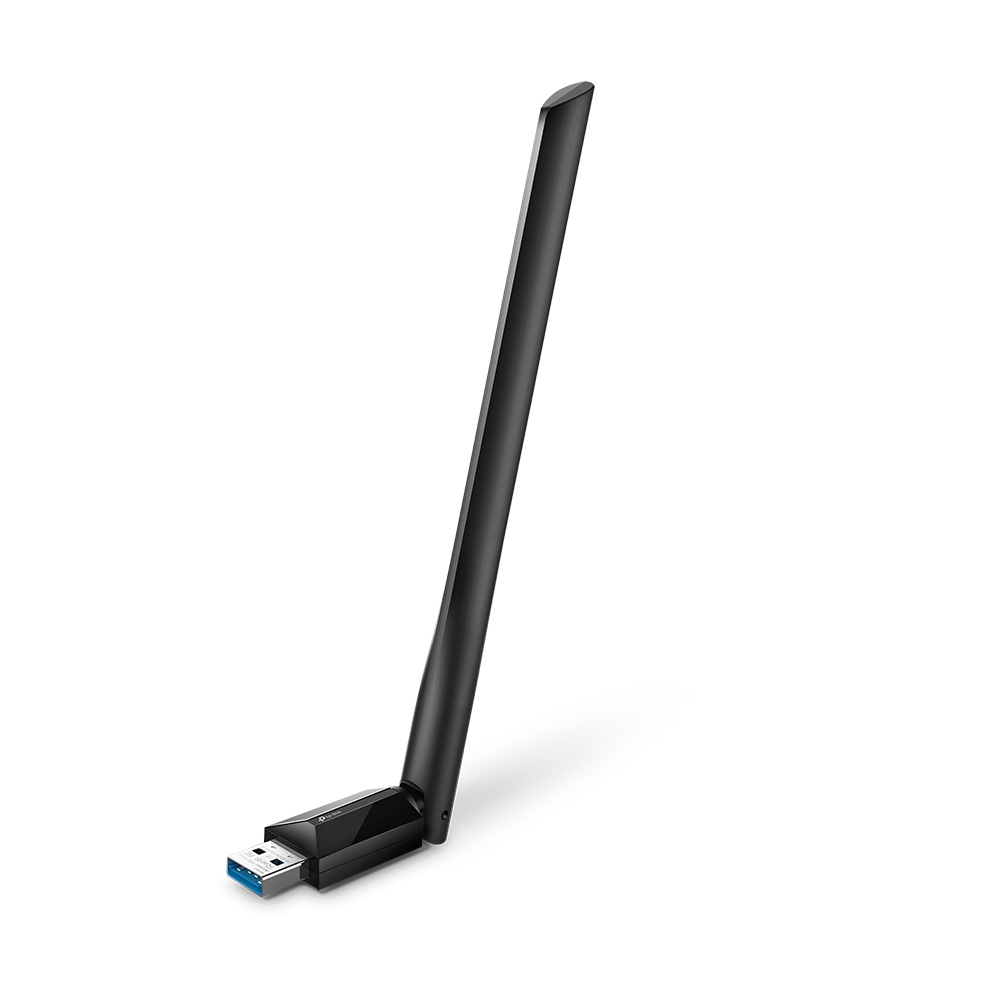

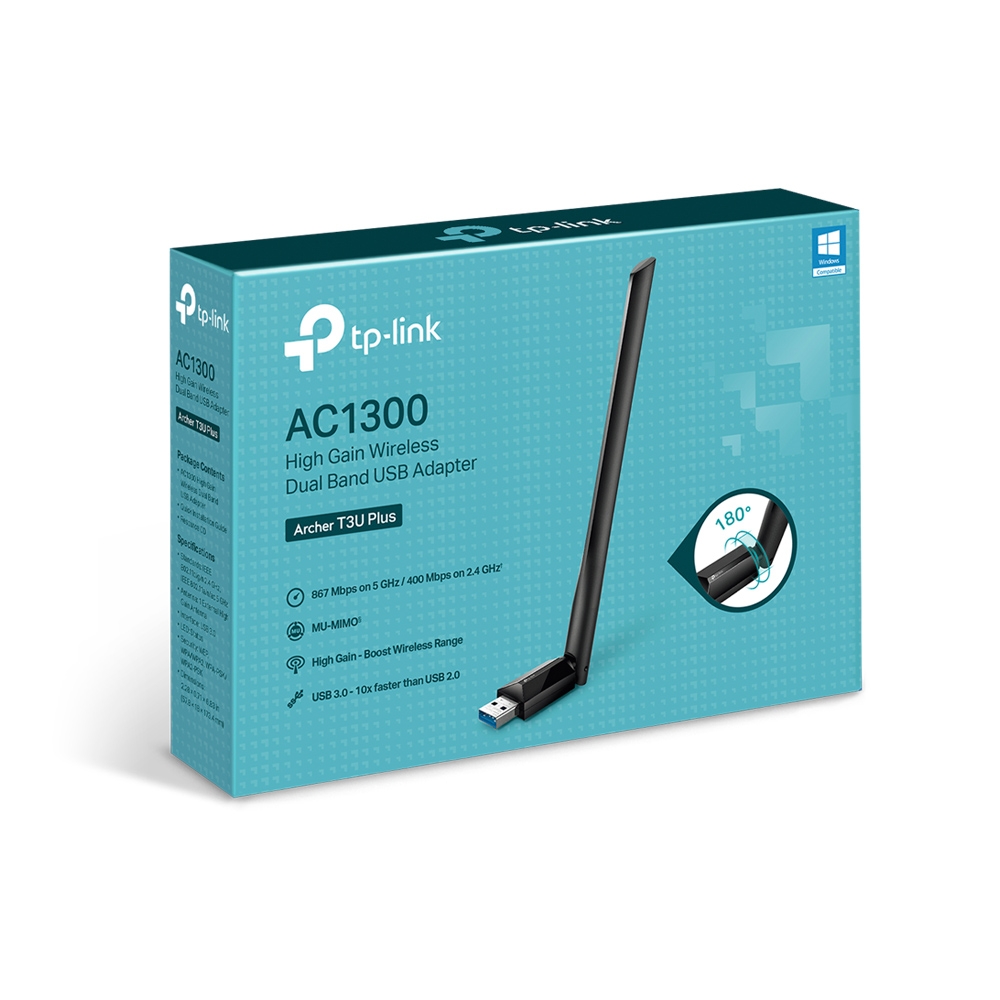

Package Contents AC1300 High Gain Wireless Dual Band USB Adapter
Quick Installation Guide
Resource CD
System Requirements Windows 10/8.1/8/7 (32/64 bit)
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
