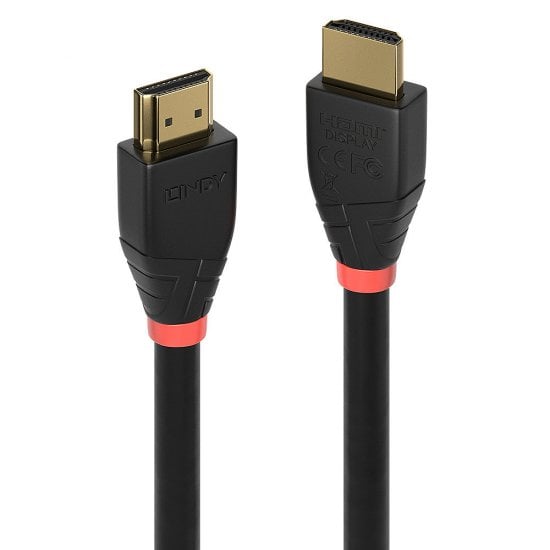

Lindy’s Active HDMI 2.0 18G cables combine sleek, modern design with superior performance to provide high quality, reliable HDMI transmission over longer distances. These cables support the full 18G HDMI bandwidth to display full 4096x2160@60Hz resolutions with additional support for the REC.2020 colour space that covers the wider colour gamut required for high-dynamic range content, for enhanced contrast and more lifelike colour.

Featuring the latest in HDMI cable technology, these cables are ideal for use with source devices such as Sky Q, PS4, XBOX One and 4K Blu-Ray Players, and are perfect for use in home cinema installations that require longer length cables with no compromise on video or audio performance.

With support for a range of multi-channel audio formats including Dolby® True HD and DTS-HD Master Audio, even over long distances, these cables ensures an impressive three-dimensional surround sound performance when connected to your amplifier or soundbar. CEC functionality also allows many of your source device settings to be controlled via your display or projectors controls to provide a simple and effective control solution, while avoiding the need for several remote controls.

Please Note: Lindy active cables must be connected in accordance with the instructions. The connector marked “display” must be connected to the monitor or screen. Failure to connect the cable in the correct manner will result in no signal. Some projectors have recessed HDMI sockets, please ensure they can accommodate the connector used on this cable.

Active HDMI cables cannot be connected together or ‘daisy chained’.

TECHNICAL INFROMATION

Connectors

• Connector A: HDMI Type A Male
• Connector B: HDMI Type A Male
• Housing Material: ABS
• Connector Plating:24K Gold Flash
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold 3um
• Dimensions WxDxH (approx.): 21.68x43x13.22mm (0.85x1.69x0.52in)

Cable Construction

• Length: 25m (82.02ft)
• Standard: HDMI 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 8.6mm (0.34in)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 28AWG
• Shielding: Aluminium Foil Mylar, 100% / Aluminum Alloy Braiding, 70%

Specifications

• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• Nominal Attenuation: 300KHz~825MHz  5dB, 2.475GHz~4.125GHz   12dB~20dB
• Minimum Bend Radius: 100mm (3.94in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -10°C - 60°C (14°F - 140°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2 Years
• Certified: CE, UKCA, FCC, RoHS, REACH & UL

Purchasing Information

• No: 41074
• EAN: 4002888410748
