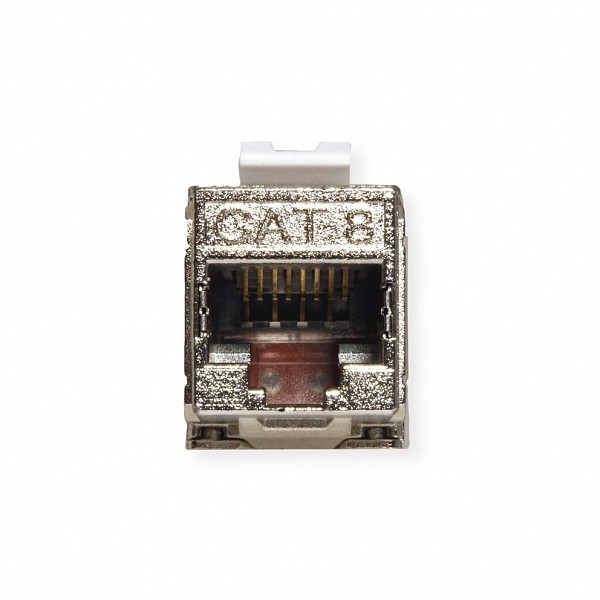

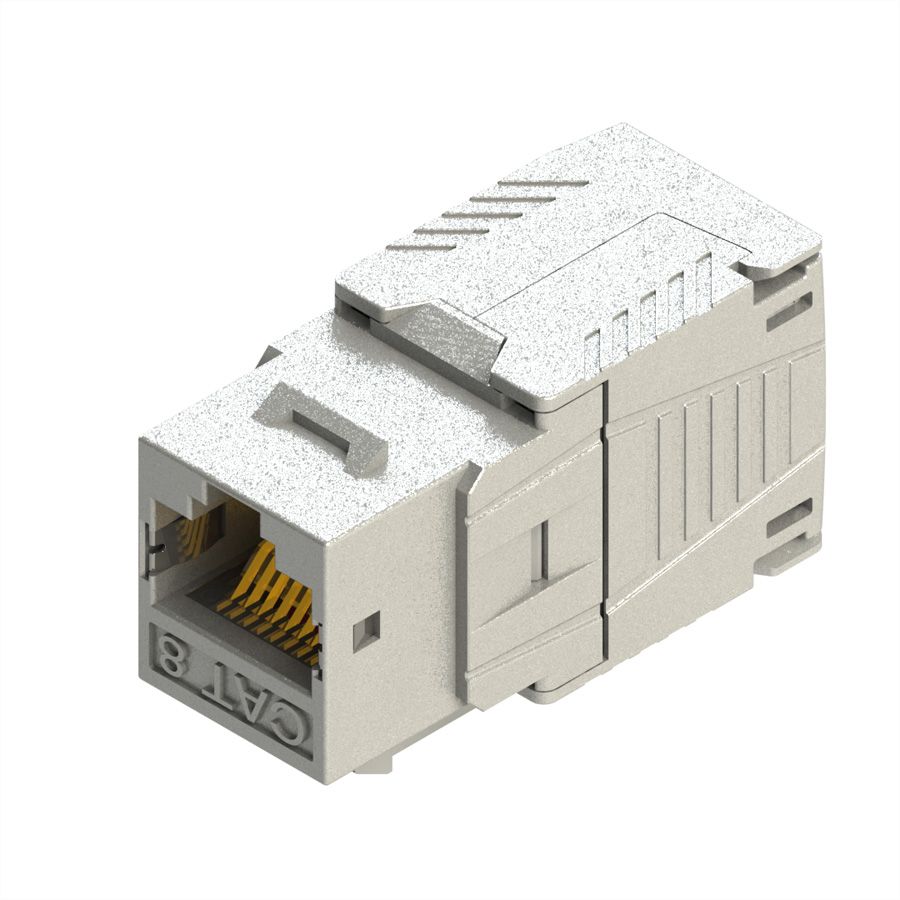

Cat.8 Keystones are ideal for use in 10 Gigabit Ethernet networks

Keystone in proven ROLINE quality!

• The ROLINE Cat.8 Keystones are ideal for use in Gigabit Ethernet networks
• Support data transfer rates up to 10/25/40 Gbit/s with a bandwidth of 2000 MHz

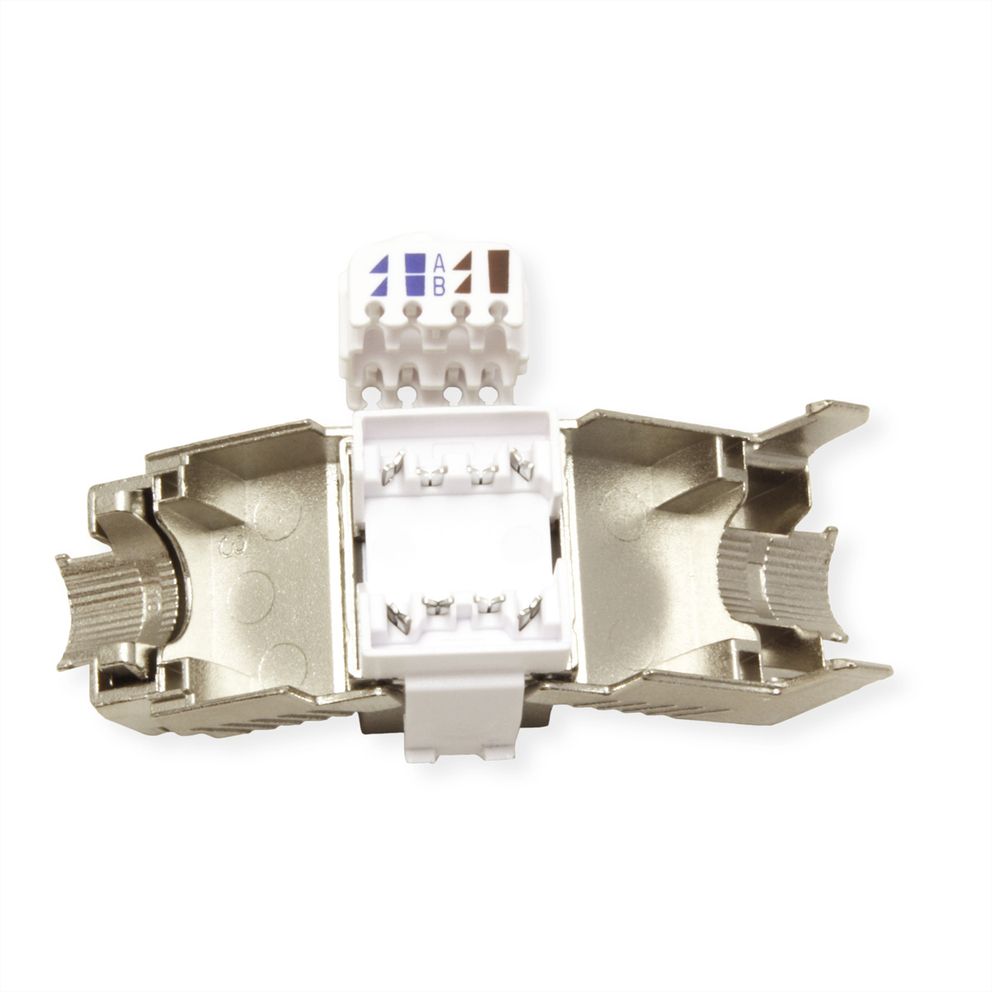

• Connect the cable to the Keystones via LSA connections without special tools - place the cable ends simply into the guides (with color coding), close and compress the module - the connection is ready for use
• The Keystone modules can be "latched" into a 19'' module support rack, which is optionally available in black (26.11.00360) or light gray (26.11.0359).
• Cable entrance diameter range: 5.5mm - 9.0mm
• Insulation diameter range: 0.95mm - 1.62mm
• Solid and Stranded conductor: 22AWG - 24AWG for Cat.8 type
• Wire coded scheme: EIA/TIA 568
• Manufacturer ROLINE
• Product group Connection technology TP
• Product type RJ45 Keystone Jack
• Colour silver
• Shield type Screened
• Transfer quality Cat8.1 / Class I
• Assignment EIA/TIA 568A & 568B
• Connection direction Straight
• Height 21 mm
• Width 12 mm
• Depth 38 mm
• Weight 29.4 g
• Height of packaging (single piece) 20 mm
• Width of packaging (single piece) 20 mm
• Depth of packaging (single piece) 60 mm
• Package weight (single piece) 0.025 kg
