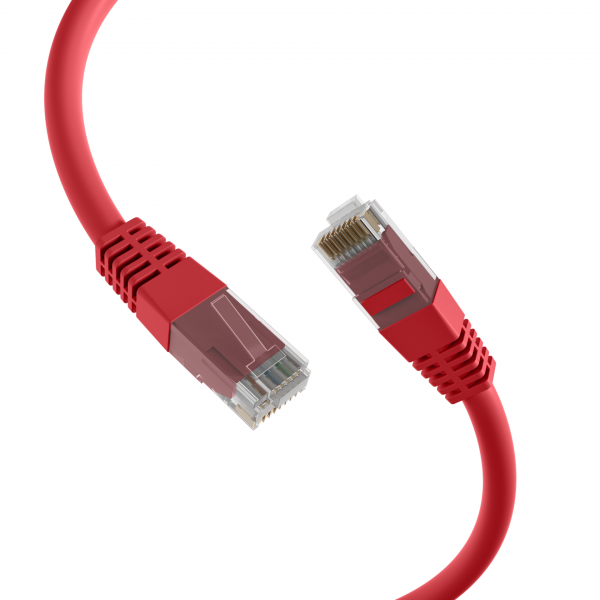

- Category 6
- Type of connector connection 1 RJ45 8(8)
- Type of connector connection 2 RJ45 8(8)
- Connector type RJ45 Standard
- Contacts 3 µ" gold plated
- Pin assignment 1:1
- Allocation acc. TIA/EIA 568B
- Type Unshielded
- Length imprint yes
- Anti-kink sleeve moulded
- Colour anti-kink sleeve red
- Locking lever No
- Bending radius 30 mm
- Cable structure U/UTP
- Cable construction 4x2
- AWG-size/strands per core 24/7
- Conductor Material CCA
- Silicone-free yes
- Jacket material PVC
- Colour outer sheath red
- Printing Cat.6 UTP AWG24 stranded x 4pairs cable
- Outer diameter of the cable 5.9 mm
- Temperature range -20 – 70 °C
- NVP value - %
- POE class PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
- Bandwidth 250MHz
- Transmission 5Gbit
- Connector IEC 60603-7-4
