Lindy Καλώδιο Επέκτασης Τροφοδοσίας C5 to C14 1m - 30340 | Καλώδια Τροφοδοσίας Ρεύματος

Lindy Καλώδιο Επέκτασης Τροφοδοσίας C5 to C14 1m - 30340

Κωδικός plus26: 16-008

Κωδικός Εργοστασίου (MPN): 30340

Εγγραφείτε για τιμή

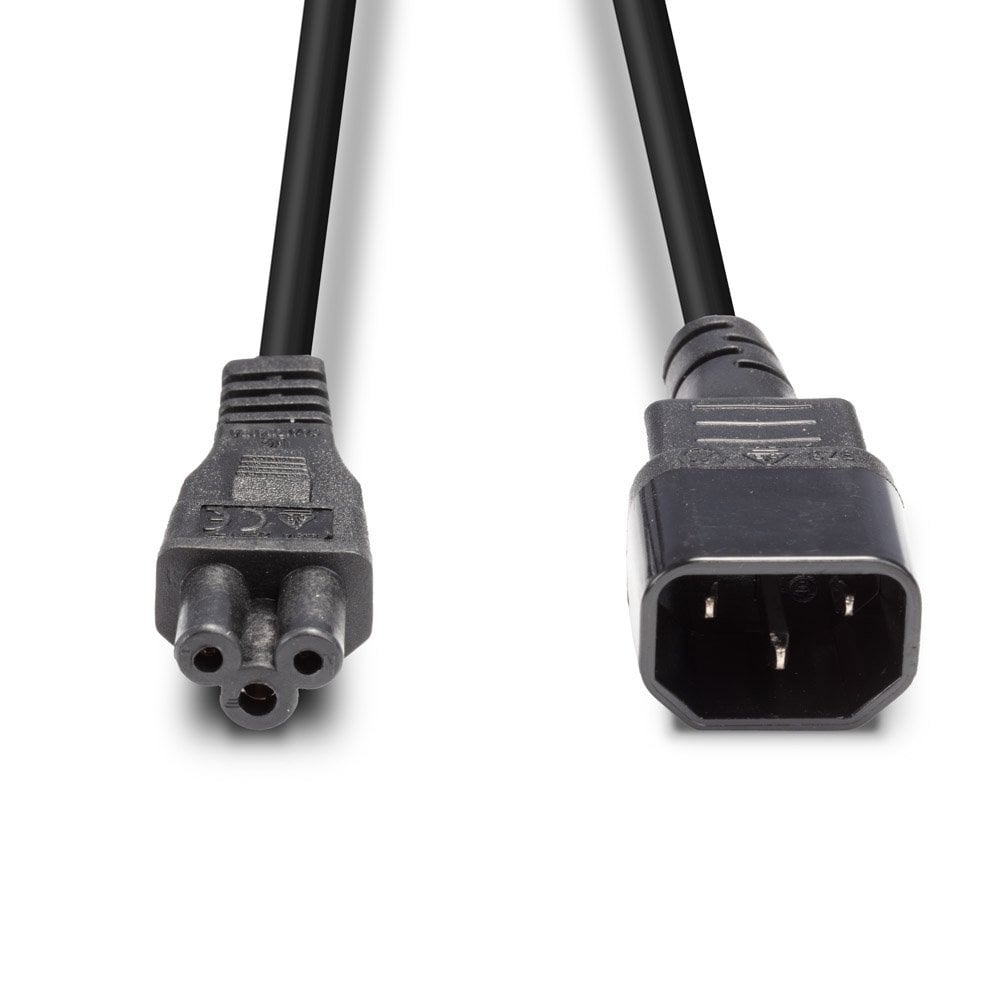

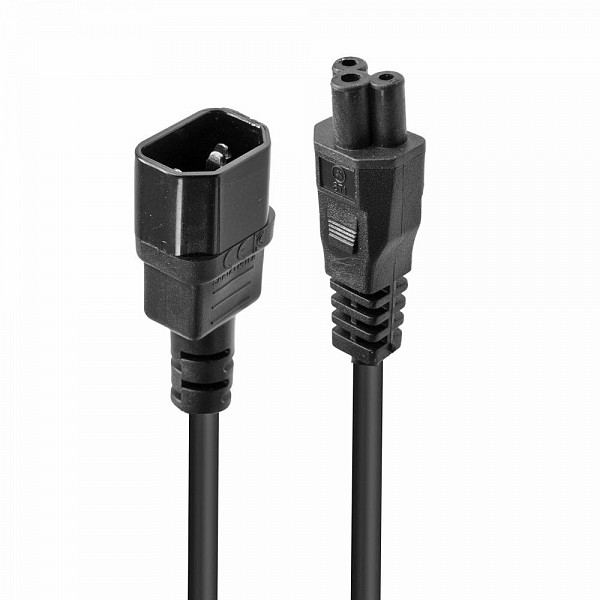

IEC C5 to IEC C14 Mains Cable for use in professional areas and private sectors

Provides max. 2.5A/250V to a device

Robust PVC/PBT housing and PVC cable jacket, lead-free connectors (<0.1% lead in brass)

High temperature resistance allows the cable to be used in non air-conditioned areas

10 year warranty

Lindy Power Cables are high quality, reliable power delivery connections for use in a wide variety of professional and home environments.

The IEC C14 connector fits to many devices with IEC C13 ports and is widely used in the IT-, Audio-, Video- and Event sector. The C5 (Mickey Mouse) connector is ideal for the connection of a notebook power supply.

The brass used in the connectors has a lead content of far below 0.1% and is therefore SVHC-free, as are all other materials used in these cables.

Please note that this cable is for use in dry areas only.

IEC C5 to IEC C14 Mains Cables are available in the following lengths: 1m, 2m, 3m and 5m.

Connectors

Connector A: IEC C5
Connector B: IEC C14
Housing Material:
- A: PVC & PBT
- B: PVC
Pin Construction:
- A: Brass
- B: Phosphor Bronze
Pin Plating: Nickel
Dimensions (approx.) WxDxH:
- A: 22.8x64x15mm (0.9x2.52x0.59in)
- B: 28.5x64x21mm (1.12x2.52x0.83in)

Cable Construction

Length: 1m (3.28ft)
Colour: Black
Conductor Material: Copper
Cable Material: H05VV-F 3G 0.75mm²
Number of Wires: 3
Wire Gauge: 0.75mm²
Jacket Diameter: 6.4mm (0.25in)
Jacket Material: PVC

Specifications

Rated Voltage and Current: 2.5A/250V
Operating Temperature: -10°C - 60°C (14°F - 140°F)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

No.: 30340
EAN: 4002888303408
