Description

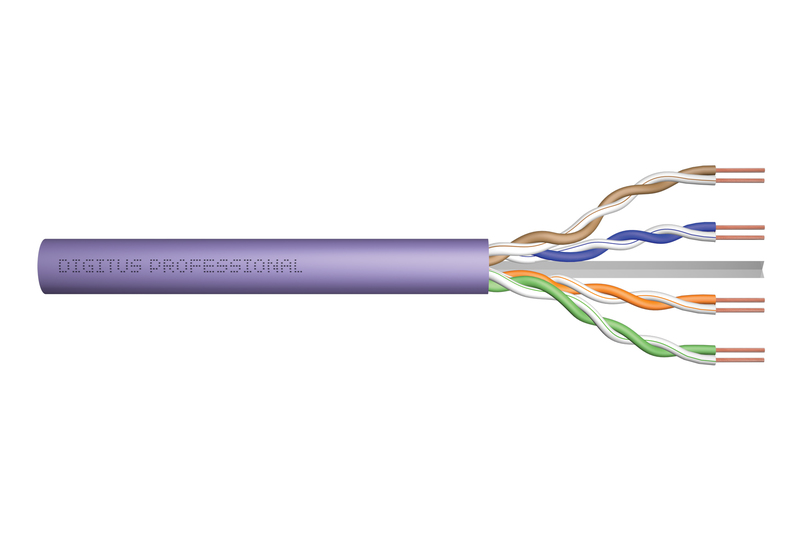

The Digitus Cat 6 U/UTP installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-6-1, DIN EN 50173, IEC 60332-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Technical details

Physical properties:
Conductor: Bare annealed copper, solid AWG 23/1
System/s of AVCP: AVCP 3
Insulation: HD-PE (High Density Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shield: None
Overall shielding: None
Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
Outer sheath diameter (nominal): 0,5 mm (Eca); 0,6 mm (Dca); 1,0 mm (Cca); 1,0 mm (B2ca)
Outer sheath color: Purple (RAL 4005)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +60 °C
Operating temperature range: -20 °C up to +75 °C
Installation temperature range: 0 °C up to +50 °C
Overall diameter Simplex (nominal): 6,1 mm (Eca); 6,3 mm (Dca); 6,8 mm (Cca); 6,8 mm (B2ca)
Weight (kg/km): 41 kg (Eca); 42 kg (Dca); 44 kg (Cca); 44 kg (B2ca)
Electrical properties:
Impedance: 100±5Ohm @ 1 - 250MHz
Capacitance: 40 pF/m nominal @ 800 Hz
Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 3
Signal propagation delay: 535 nS/100 m max.
Propagation delay: 20 nS/100 m max.
Separating class: ,,b" gem. EN 50174-2
NVP: 69%

Attributes

Assortment: Twisted Pair Installation Cables
Category: CAT 6
Shielding: U-UTP, unshielded
CPR: Eca
Length: 100 m
Color: violet
Jacket: LSOH
Structure: 4 x 2 AWG 23/1, solid twisted pair
