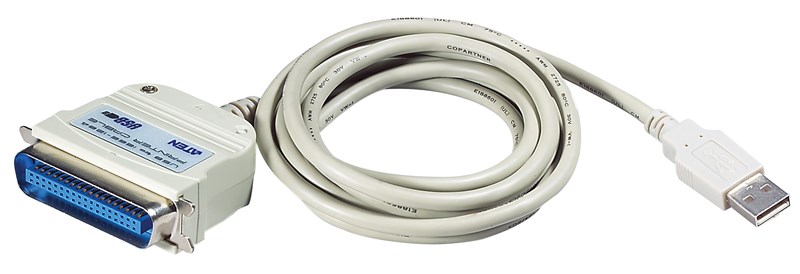

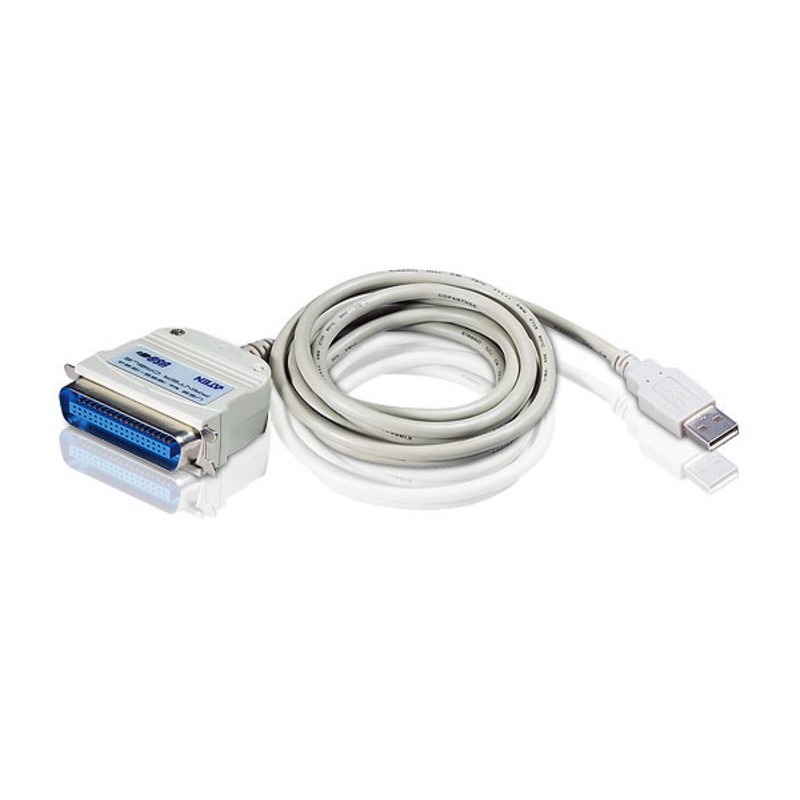

Aten USB to IEEE1284 Printer Adapter (1.8m) UC1284B

Κωδικός plus26: 2907-2

Κωδικός Εργοστασίου (MPN): UC1284B

Εγγραφείτε για τιμή

Fully bidirectional to ensure compatibility with today's latest printers

1 USB Type-A connector for standard USB cable connection

1 C-36 parallel connector

Max. Throughput: 1.2 Mbits/ Sec (ECP Mode)

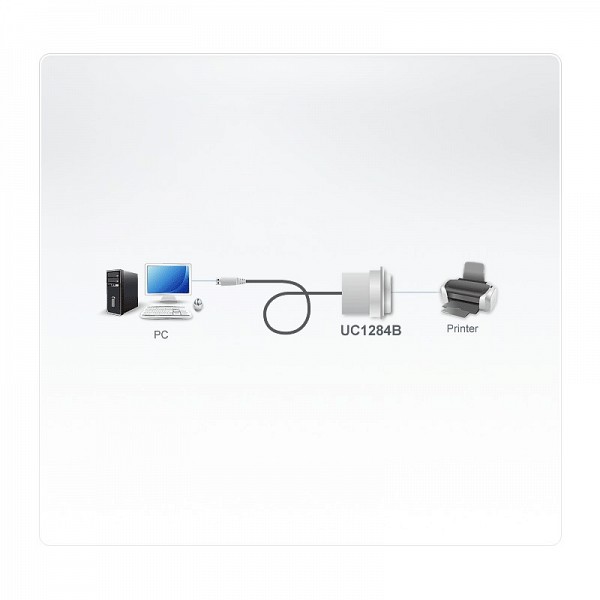

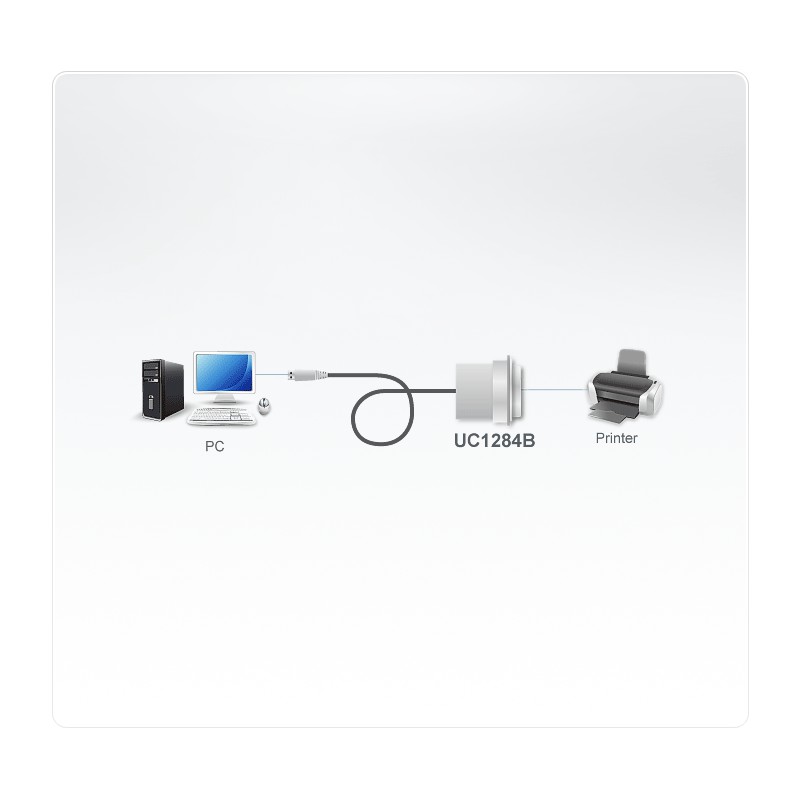

UC1284B is a USB to parallel port converter. It converts the USB on PCs, notebook PCs and handheld computing devices into a parallel port for printer connection.

Package Contents

1x UC1284B
1x User Instructions

Fully bidirectional to ensure compatibility with today's latest printer.
1 USB Type-A connector for standard USB cable connection
1 C-36 parallel connector
Fully compliant with USB
Non-powered.
Max. Throughput: 1.2 Mbits/ Sec (ECP Mode)
OS Support:Windows 2000, Windows XP, Windows Vista and Windows 7

Connectors
USB Port 1 x USB Type A Male (White)
Printer 1 x C-36 Male
Data Rate 1.2 Mbits/Sec
Cable Length 1.8m
LEDs N/A
Power Mode Bus Powered
USB Specification USB compliant
Environmental
Operating Temperature 0-40˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.11 kg ( 0.24 lb )
Dimensions (L x W x H) 5.30 x 4.30 x 1.95 cm
(2.09 x 1.69 x 0.77 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
