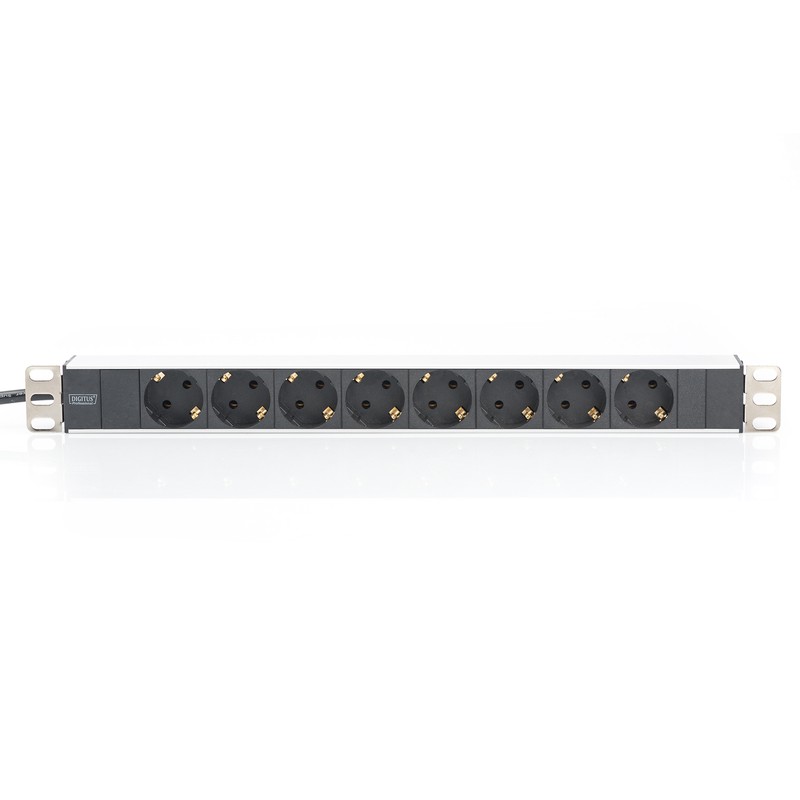

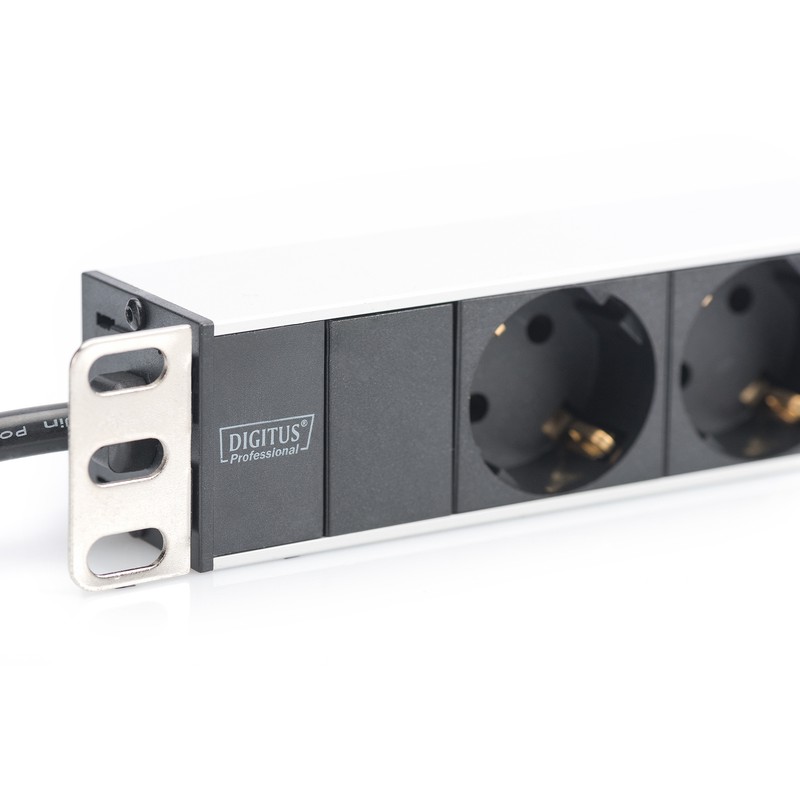

The DIGITUS® power distribution units are the perfect solution for you 482.6 mm (19") network- or server cabinet. Optimized for rack installation with 220-240V 50-60 Hz the DIGITUS® PDU offer you the best performance with qualified efficiency. The 482.6 mm (19") fixing material provides an optimized enclosing on the profile rails of your cabinets. Every PDU can be mounted horizontally as well as vertically and has the possibility, according to the cabinet, to be mounted faced up or down.

Technical details

• 8x safety outlets 250VAC 50/60Hz / 16A / 4000W
• 2x angle profiles for cabinet mounting
• Aluminum profile
• 2 m Cable H05VV-F 3G1,5 mm² with safety plug
• Plastic components made by ABS UL-94V-0
• Grounding on aluminium profile
• 45° turned safety outlets

Attributes

• Current: 16 A
• Input Plug: CEE7/7
• Installation: Desktop, Rack 0U, Rack 1U
• Outlets: CEE 7/3
• Phase: 1ph
• Power: 3,6 kVA
• Volts: 230 V
• Inch form factor (IEC 60297): 482.6 mm (19")
