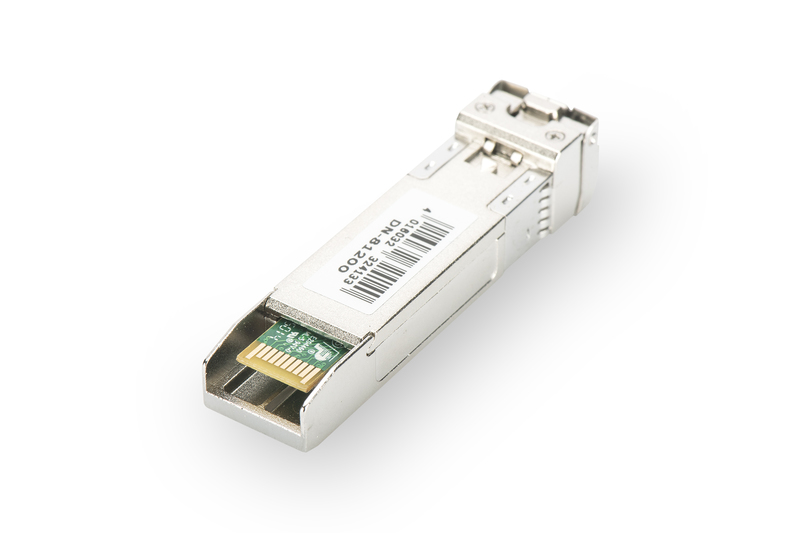

10G SFP+ Module, Multimode, DDM LC Duplex Connector, 850nm, up to 300m

The plug and play fiber connection

• The Plug & Play fiber optic link enables quick installation
• Sends data in high quality and additionally provides excellent reliability
• Distance up to 0.3km at a maximum data rate of 10Gbps
• Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

Technical Details

• Mini GBIC SFP (Small Form Factor Pluggable) module
• Compatible with the following manufacturers: Allied Telesis, Allnet, CISCO, D-Link, Edimax, Hirschmann, Intellinet, KTI Networks, Level One, Netgear, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE
• Supports DDM (Digital Diagnostic Monitoring)
• High quality and excellent reliability
• 10 Gbps Maximum Data Rate
• Compliant to IEEE802.3ae 10 Gigabit Standard
• Class 1 laser product compliant with EN 60825-1
• Easy plug-and-play installation
• MSA (Multi Source Agreement) compliant
• Hot pluggable
• Connector: 1x LC Duplex
• Wavelength: 850nm
• Transmission Power: Minimum -5 dBm, Maximum -1 dBm
• Empfangssensitivität: Minimum -11,5 dBm
• For a distance of up to 0.3km
• Safe fast-locking mechanism
• 3.3V power supply
• Operating temperature: 0 °C ~ 70 °C
• USB-C Products: no
• Broadcasting Mode: Unidirectional
• Manufacturer compatibility: Cisco
• Connector: LC
• DDM Support: yes
• Distance (km): 0.3
• Mode: Multimode
• Ethernet speed: 10 Gigabit
• Wavelength: 850 nm

Package content

• SFP module
