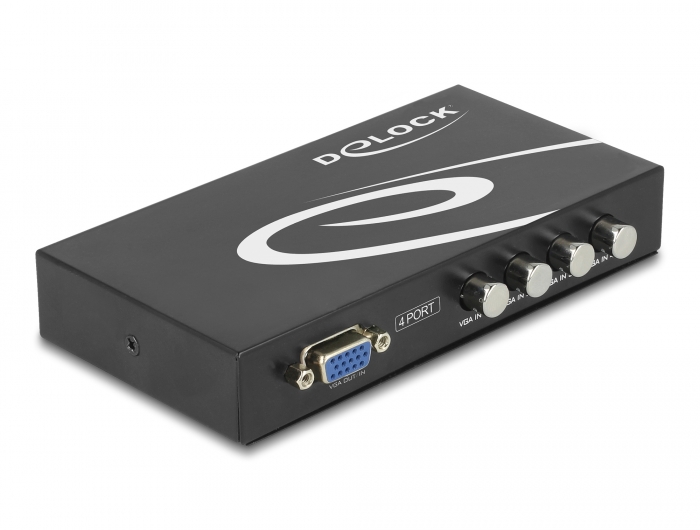

This VGA switch by Delock is a manually bidirectional switch for connecting different devices with VGA port. This switch offers two different applications.

You can connect up to four computers with VGA port to one monitor, TV or beamer etc. with VGA input port. By using the button you can select which device should display the signal.
You can connect one computer with VGA port to up to four displays and select the monitor which should display the signal by using the button. (Simultaneous output to multiple screens is not possible)

Specification

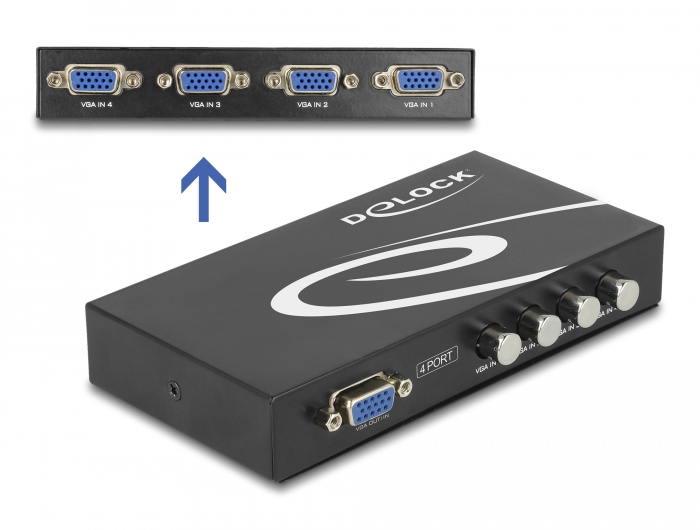

Connectors:
Function 1

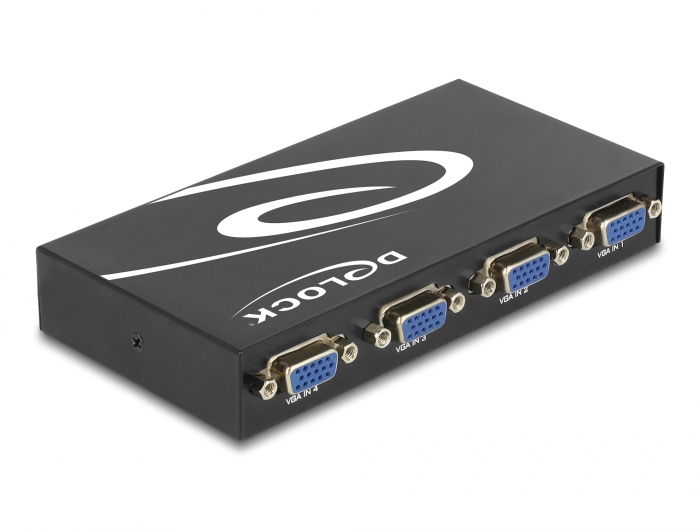

Input: 4 x VGA 15 pin female
Output: 1 x VGA 15 pin female
Function 2
Input: 1 x VGA 15 pin female
Output: 4 x VGA 15 pin female
4 mechanical buttons
Resolution up to 1920 x 1080
(depending on the system and the connected hardware)
Metal housing
No external power supply needed
Dimensions (LxWxH): ca. 142 x 72 x 23 mm
Colour: black

System requirements

PC or laptop with a free VGA port
VGA connection cables

Package content

Switch bidirectional
User manual

Package

Retail Box

Revision notice

Revision 2.0 from January 2017 - old data see documents
