Aten CONSOLE 1U 17" VGA - CL1000M
Κωδικός plus26: 170-38
Κωδικός Εργοστασίου (MPN): CL1000M

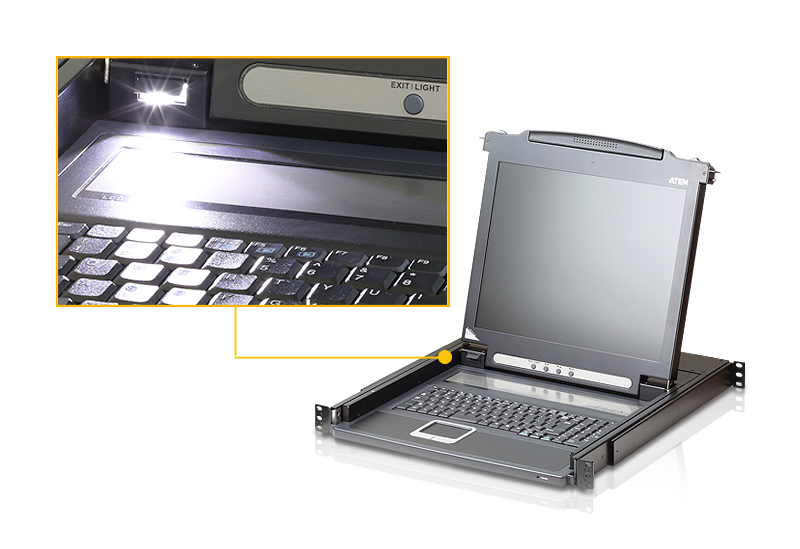

- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- Supports input video resolutions up to 1920 x 1200@60 Hz

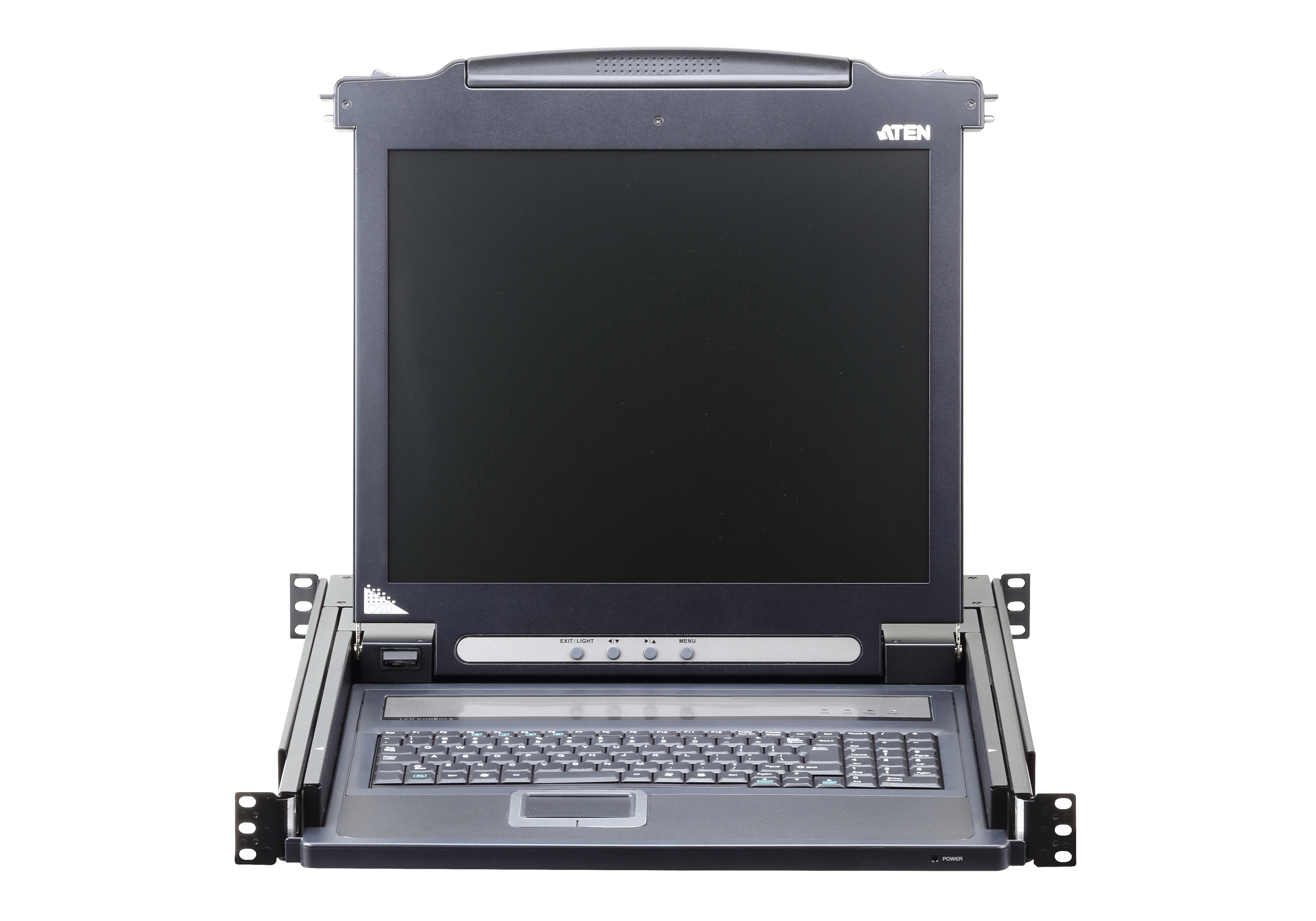

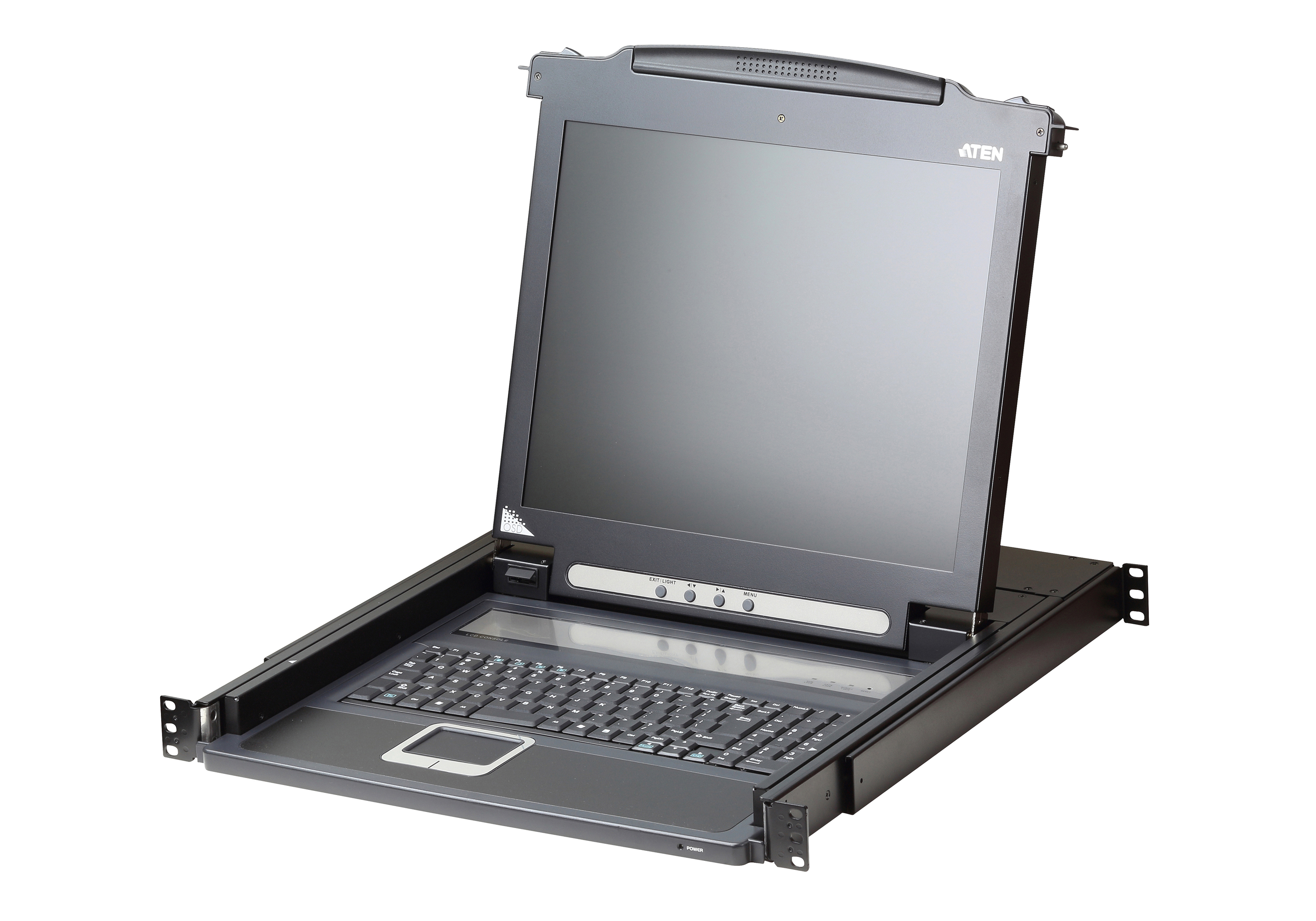

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below or the link: LCD KVM Optional Rack Mount Kit
CL1000M: 17" LCD
CL1000N: 19" LCD
Package Contents
- 1x CL1000M or CL1000N with Standard Rack Mount Kit
- 1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
- 1x Power Cord
- 1x User Instructions
--------------------------
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
- Compatible with PS/2 or USB KVM switches when they are connected using custom KVM cables or converters1
- Internal power supply
- Adjustable depth to fit within a rack
- High video resolution:
• Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
• Supports DDC, DDC2, DDC2B
• DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor - Optional rack mount kits available including easy installation options2
Note:
1. For more information, refer to Compatible Cables below.
2. Contact your ATEN dealer for product information.
* Compatible rack mounting kit:
CL1000M: 2X-010G, 2K-0003, 2K-0004
CL1000N: 2X-023G, 2K-0003, 2K-0004
Καλέστε μας
Για βοήθεια σχετικά με την επιλογή του κατάλληλου RACK και των παρελκόμενων του επικοινωνήστε μαζί μας για διευκρινίσεις.
Παράδοση
ΠΡΟΣΟΧΗ: Η παράδοση των RACK γίνεται στην είσοδο του κτιρίου.
Μεταφορικά
Για βαριά ή ογκώδη αντικείμενα επικοινωνήστε μαζί μας για μειωμένα εξόδα αποστολής με συνεργαζόμενη μεταφορική.
Computer Connections
Direct 1 1

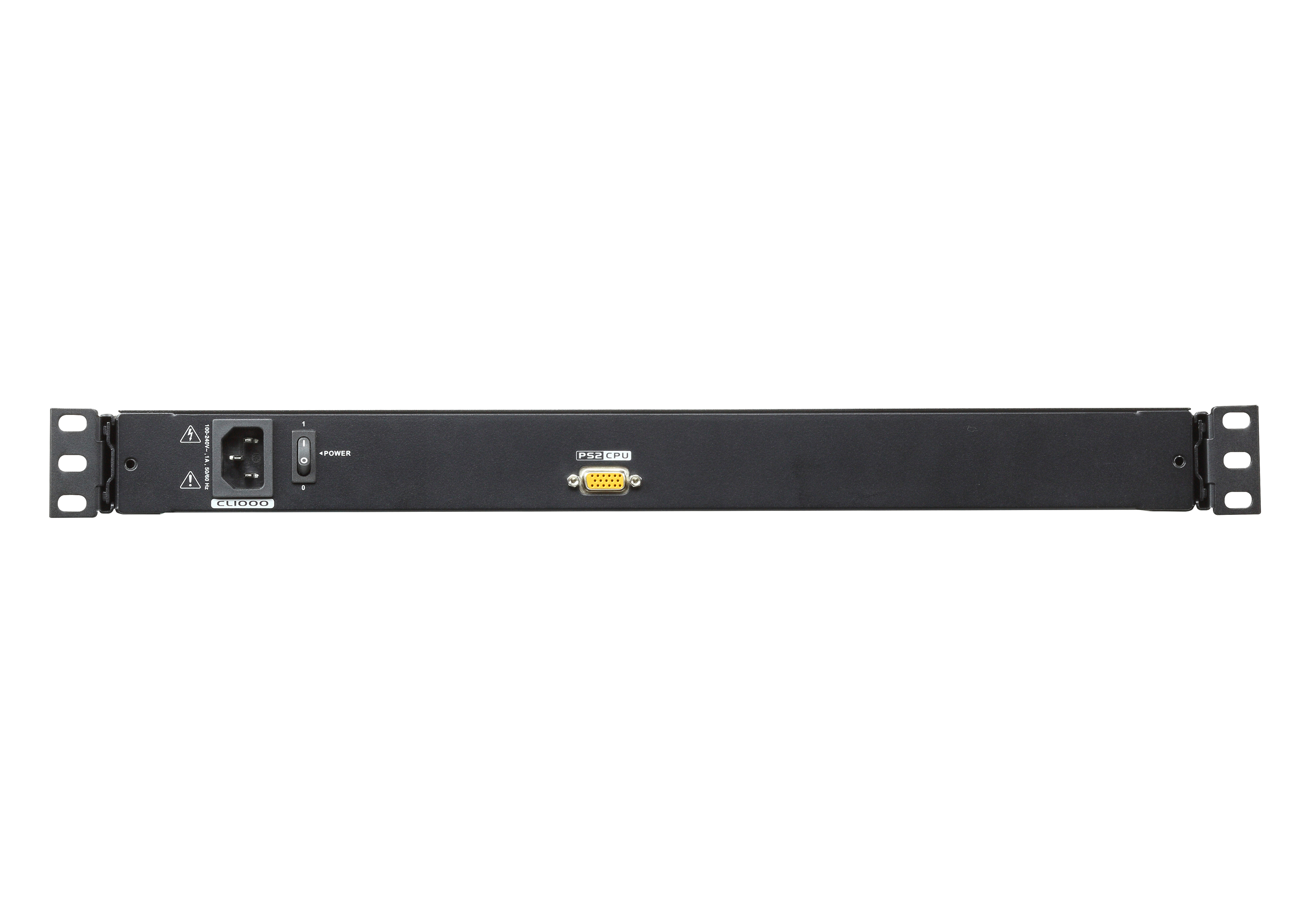

Connectors
KVM Ports 1 x SPHD Female (Yellow) 1 x SPHD Female (Yellow)
Power 1 x IEC 60320/C14 1 x IEC 60320/C14
Switches
Reset 1 x Semi-recessed Pushbutton
1 x Semi-recessed Pushbutton
Power 1 x Rocker Switch N/A
LCD Control 4 x Pushbutton 4 x Pushbutton
LCD Power N/A 1 x LED Pushbutton
LEDs
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange) 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green) 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 17" TFT-LCD 19" TFT-LCD
Resolution 1280 x 1024 @ 75 Hz 1280 x 1024 @ 75 Hz
Response time 5 ms 5 ms
Viewing Angle 170° (H), 160° (V) 170° (H), 160° (V)
Pixel Pitch 0.264 mm x 0.264 mm 0.294 mm x 0.294 mm
Support Color 16.7M colors 16.7M colors
Contrast Ratio 1000:1 1000:1
Luminance 250 cd/m² 250 cd/m²
Video
Input Video Resolution up to 1920 x 1200 @ 60Hz;
1280 x 1024 @ 75 Hz, DDC2B up to 1920 x 1200 @ 60Hz;
1280 x 1024 @ 75 Hz, DDC2B
Emulation
Keyboard / Mouse PS/2, USB(via 2L-520xUP cables) PS/2, USB(via 2L-520xUP cables)
Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1A 100-240 VAC; 50-60 Hz; 1A
Power Consumption AC110V:19.6W:92BTU
AC220V:21.3W:100BTU AC110V:29.2W:137BTU
AC220V:29.3W:137BTU
Environmental
Operating Temperature 0-50˚C 0-50˚C
Storage Temperature -20-60˚C -20-60˚C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal+Plastic Metal+Plastic
Rail Type Single Rail Single Rail
Weight 12.02 kg ( 26.48 lb ) 11.06 kg ( 24.36 lb )
Dimensions (L x W x H) 48.00 x 53.83 x 4.40 cm
(18.9 x 21.19 x 1.73 in.) 48.30 x 58.52 x 4.40 cm
(19.02 x 23.04 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
