Description

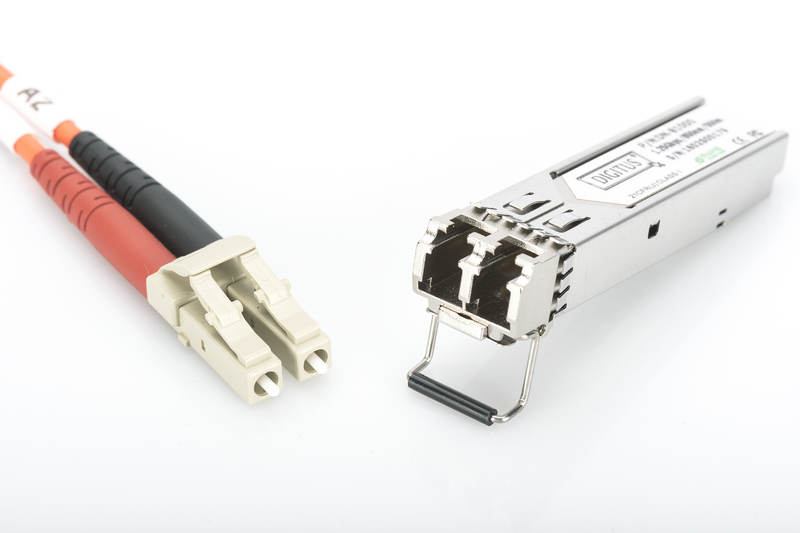

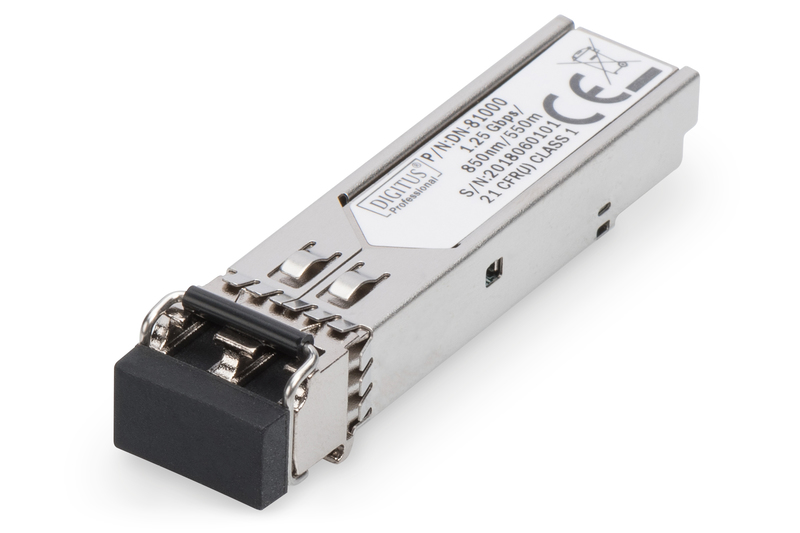

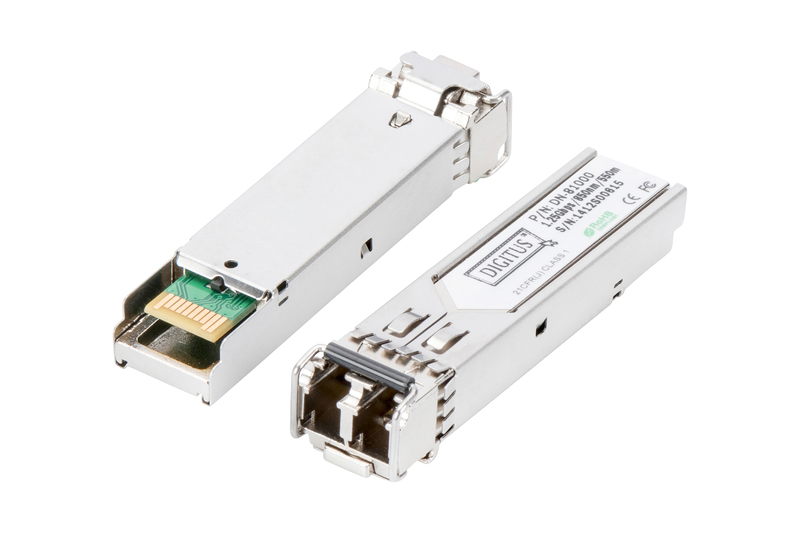

1.25 Gbps SFP Module, Multimode LC Duplex Connector, 850nm, Up to 550m

The plug and play fiber connection

• The Plug & Play fiber optic link enables quick installation
• Sends data in high quality and additionally provides excellent reliability
• Distance up to 0,55km at a maximum data rate of 1.25Gbps
• Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

Technical Details

• Mini GBIC SFP (Small Form Factor Pluggable) module
• Compatible with the following manuafacturers: Ubiquiti, Allied Telesis, Allnet, CISCO, D-Link, Edimax, Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE , Avaya , Mikrotik , ENTERASYS, FINISAR, FORCE 10 ,RIVERSTONE , Fortinet
• High quality and excellent reliability
• 1.25 Gbps Maximum Data Rate
• Compliant to IEEE 802.3z Gigabit Standard
• Class 1 laser product compliant with EN 60825-1
• Easy plug-and-play installation
• MSA (Multi Source Agreement) compliant
• Hot pluggable
• Connector: 1x LC Duplex
• 1000Base-SX - For Short Haul
• Wavelength: 850nm
• Transmission power: minimum -8 dBm, maximum -3 dBm
• Sensitivity Receiving Power: Minimum -20 dBm
• For a Distance of up to 0.55km
• Suitable for 50/125µm and 62.5/125µm multimode fiber cables
• Safe fast-locking mechanism
• 3.3V power supply
• Operating temperature: 0 °C ~ 70 °C
• USB-C Products: no
• Broadcasting Mode: Unidirectional
• Manufacturer compatibility: Universal (MSA), Cisco
• Connector: LC
• DDM Support: no
• Distance (km): 0.5
• Mode: Multimode
• Ethernet speed: Gigabit
• Wavelength: 850 nm

Package content

• SFP module
